Single Disc Drill

Field Proven

Built with Amity Technology’s patented opposing single discs, the Amity Single Disc Drill is field proven in no-till, minimum till and conventional till soil conditions. The hair pinning and sidewall compaction with competitive drills simply does not occur with the Amity Single Disc Drill.

The wide-angled packer wheels shed mud in wet conditions and opposing single discs promote soil warming by disturbing a narrow band of soil between the two discs, providing the benefits of vertical tillage at seeding.

Productive

Productivity is possibly the most important thing in your farming operation. The Amity Single Disc Drill seeds in all tillage environments, making it the most efficient drill in the industry. Research on soil health keeps tillage practices changing. The Amity Single Disc Drill keeps up with these changes, seeding soybeans and cereal crops spring or fall in conventional, minimum and no-till environments.

The Amity Single Disc Drill is available in 30, 40, 50 and 60-foot widths, as well as the 30-foot Narrow Transport drill, covering more ground in less time.

With a seeding speed of up to 9 miles per hour, the Amity Single Disc Drill will seed more acres than larger competitive drills. It is the best choice for efficient and accurate seeding of soybeans and all cereal crops spring or fall.

Accurate

The Single Disc Drill can apply liquid, dry or NH3 fertilizer. It is the most efficient applicator of NH3 because it properly closes the furrow so the NH3 is captured.

Mid-row banders can be added or removed for proper fertility placement. The ease of changing the mid-row banders gives added value at trade in

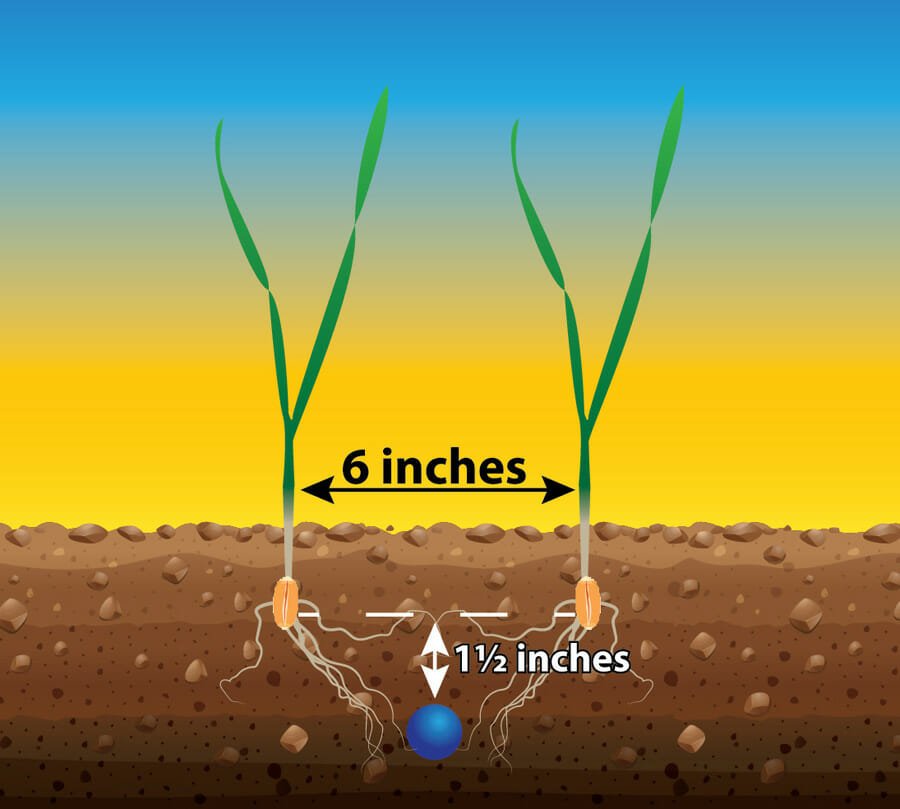

Optimal row width and fertilizer placement with the Single Disc Drill can give you a yield advantage vs. broadcast applications. Mid-row banding places starter fertilizer 3 inches from the plant row and up to 1.5 inches below the seed, so as the plant grows, the roots reach the fertilizer at the right time in their development.

Simple

The Amity Single Disc Drill with precise down pressure gives consistent depth of seed for better stand and more uniform emergence. With the Single Disc Drill, the soil and residue are fractured, lifted and releveled by the packer wheels.

Frame height cylinders control seeding depth. There is no need to crawl through the machine to adjust each individual opener. This on-the-go pressure adjustment and quick seeding depth adjustment make seeding easier.

Right away, you’ll notice details that make the Single Disc Drill easier to operate and maintain, including:
  • One rank seed openers
  • Single point down pressure control
  • Easy depth control adjustment
  • Simple daily maintenance (two 25 hour grease zerks per transport tandem)
  • Annual greasing of bearings on all disc and packer hubs

Precise Down Pressure

The down pressure is precisely maintained by a hydraulic cylinder on each tool bar. The pressure is constant throughout the entire range of cylinder travel. Pressure on the cylinders is controlled by the operator on-the-go. A pressure display on the down pressure control box allows the operator to monitor down force on the tool bars.

Versatile

The Amity Single Disc Drill opener has 75% fewer parts than competitors and requires no in-season maintenance. The Amity Single Disc Drill can easily be converted to a fertilizer applicator only. No other drill on the market can do this! Because the Single Disc Drill disturbs less soil, you can apply fertilizer in the spring for a great yield on corn and soybeans!

6”/9” Configuration

  • Small grains
  • Soybeans

  • Pulse crops
  • Canola

  • Cover crops
  • Fertilizer

Twin Row 30” Configuration

  • Soybeans

  • High-speed strip till

  • High-rate fertilizer application

SPECIFICATIONS
Width
30 ft
30NT
40 ft
50 ft
60 ft
Sections 3 3 3 5 5
Total weight 21,200 lbs (9,616 kg) 24,400 lbs (11,068 kg) 26,500 lbs (12,020 kg) 38,500 lbs (17,463 kg) 42,500 lbs (19,278 kg)
Weight with banders 24,500 lbs (11,113 kg) 29,000 lbs (13,154 kg) 31,000 lbs (14,061 kg) 44,000 lbs (19,958 kg) 49,000 lbs (22,226 kg)
Weight of ballast kit 1,280 lbs (581 kg) 1,280 lbs (581 kg) 1,620 lbs (735 kg) 2,220 lbs (1,007 kg) 2,900 lbs (1,315 kg)
Working width 30’ (9.1 m) 30’ (9.1 m) 40’ (12.2 m) 50’ (15.2 m) 60’ (18.3 m)
Transport width 14’ 3” (4.3 m) 11’ 6” (3.5 m) 18’11” (5.8 m) 21’ 6” (6.6 cm) 21’ 6” (6.6 m)
Transport clearance 0-20” (0-50.8 cm) 0-20” (0-50.8 cm) 0-20” (0-50.8 cm) 0-20” (0-50.8 cm) 0-20” (0-50.8 cm)
Transport height 14-15’ 6” (4.42-4.72 m) 12’ 8”-13’ 6” (3.8-4.1 m) 16-17’ 10” (5.13-5.44 m) 14-15’ 6” (4.42-4.72 m) 16-17’ 10” (5.13-5.44 m)
Tires/Main frame 440/55R18IMP 159A8/B 440/55R18IMP 159A8/B 440/55R18IMP 159A8/B 440/55R18IMP 159A8/B 440/55R18IMP 159A8/B
Tires/Wings 440/55R18IMP 137A8/B 440/55R18IMP 137A8/B 440/55R18IMP 137A8/B 440/55R18IMP 137A8/B 440/55R18IMP 137A8/B
Weight transfer hitch N/A N/A Req’d with banders Standard Standard
Tractor requirements ** 180-275 hp 225-325 hp 260-350 hp 320-425 hp 380-500 hp
# of seed openers 48 48 64 80 96
# of fertilizer openers 24 24 32 40 48
Disc size 18” (45.6 cm) 18” (45.6 cm) 18” (45.6 cm) 18” (45.6 cm) 18” (45.6 cm)
Packing pressure Operator adjusted Operator adjusted Operator adjusted Operator adjusted Operator adjusted
Seeding depth 0-3” (0-7.6 cm) 0-3” (0-7.6 cm) 0-3” (0-7.6 cm) 0-3” (0-7.6 cm) 0-3” (0-7.6 cm)
Row spacing 6”/9” (15 cm/23 cm) paired row 6”/9” (15 cm/23 cm) paired row 6”/9” (15 cm/23 cm) paired row 6”/9” (15 cm/23 cm) paired row 6”/9” (15 cm/23 cm) paired row
Twin row 30” option 6”/24” (15 cm/61 cm) 6”/24” (15 cm/61 cm) 6”/24” (15 cm/61 cm) 6”/24” (15 cm/61 cm) 6”/24” (15 cm/61 cm)
