Crop Chaser 1000
New Level of Efficiency
The Crop Chaser Multi-crop Controlled-dump Cart from Amity Technology is the field-proven solution™ to harvest you’ve been waiting for! The patented design of this high-capacity, track-driven controlled dump cart with integrated scales offers unmatched logistical benefits in any field condition. Transitioning between crops is quick and easy.
Excellent Unloading Control

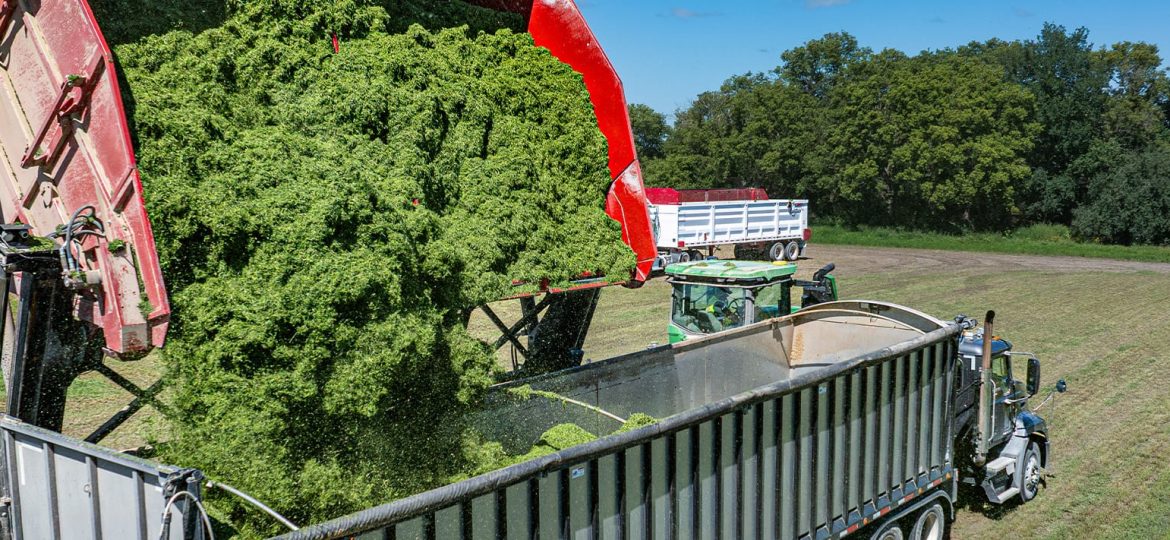

The Crop Chaser includes independent front and rear live chain walls for controlled unloading. Pin location in the chassis can be changed to tip at a 13°, 26°, or 43° dump angle. From there, the patented live chain walls meter and control the rate of flow for an optimal fill on the trailer. For maximum control over the dump rate, there are hydraulic controls for:

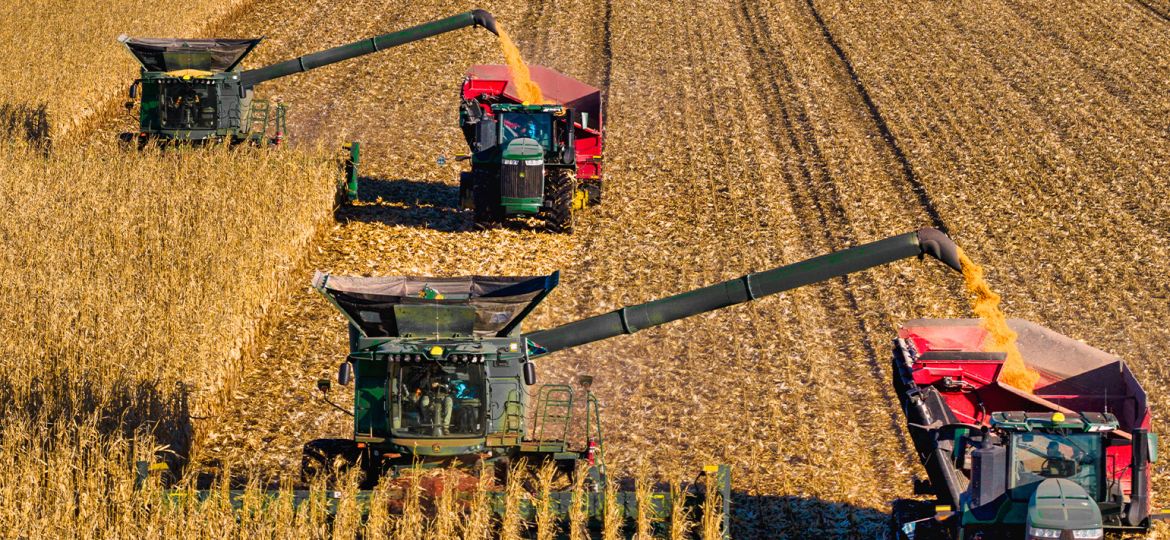

Multi-crop convenience

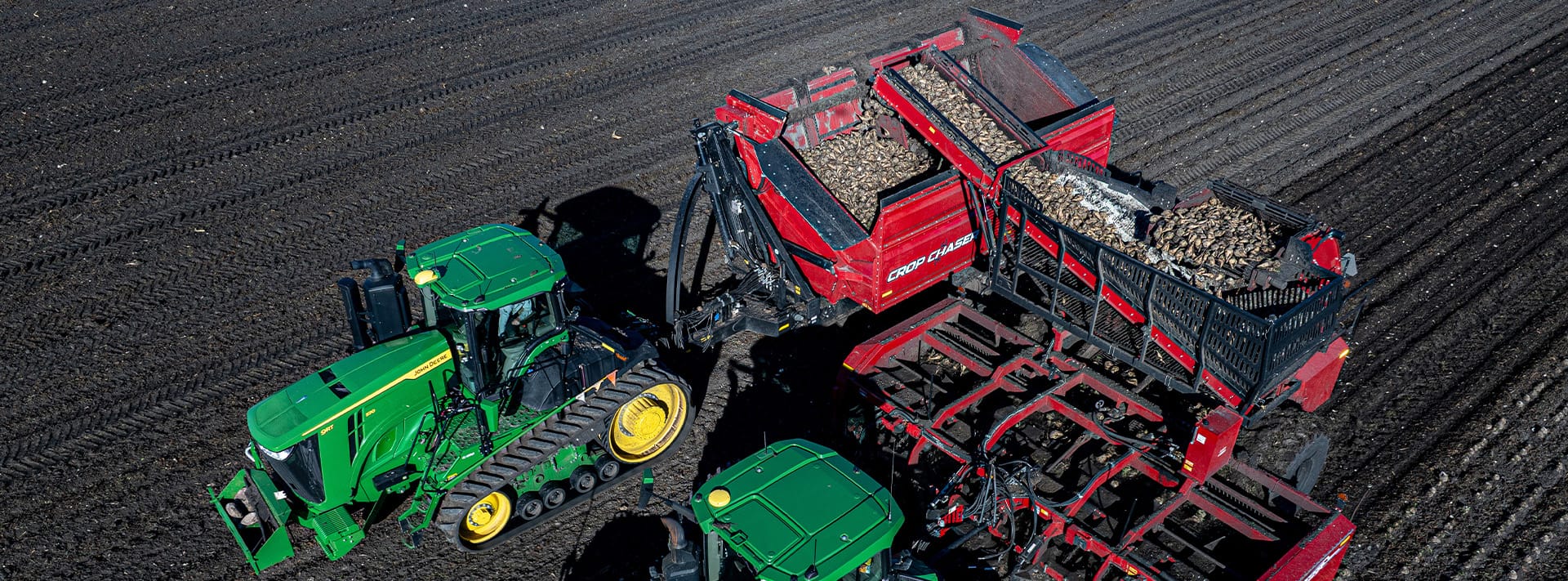

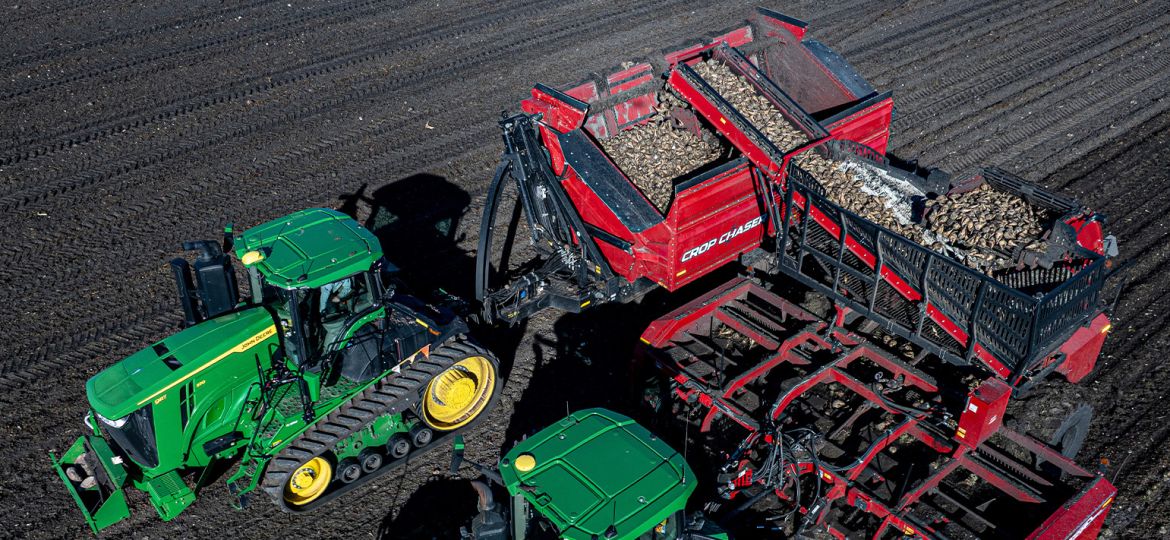

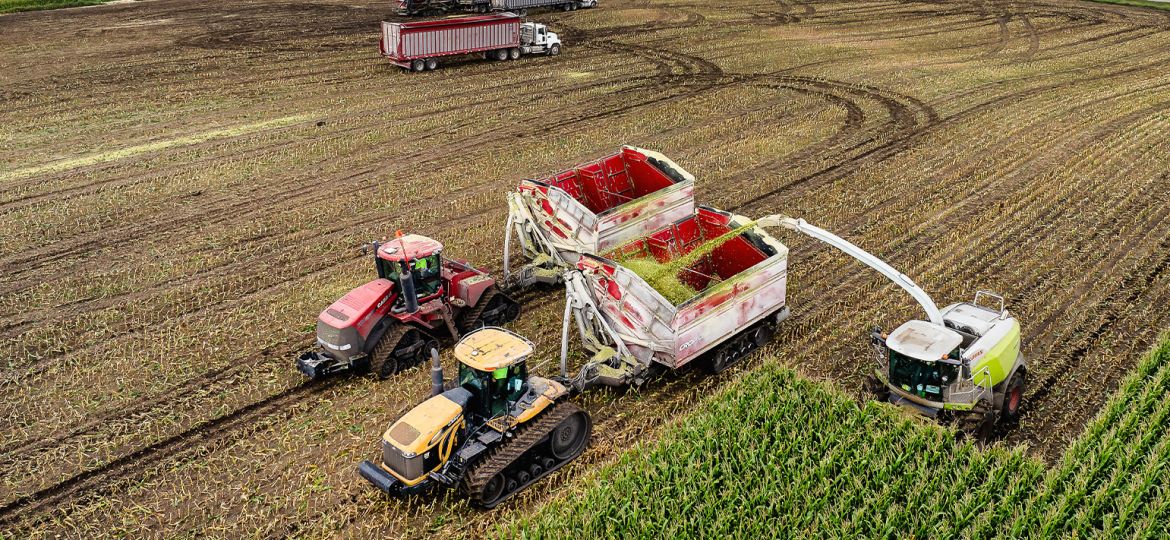

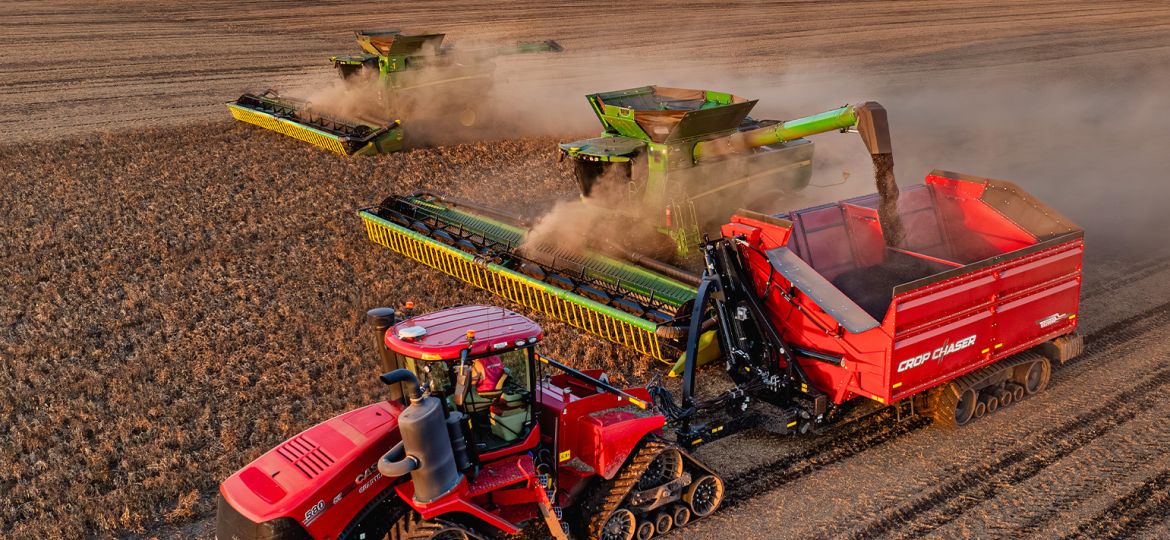

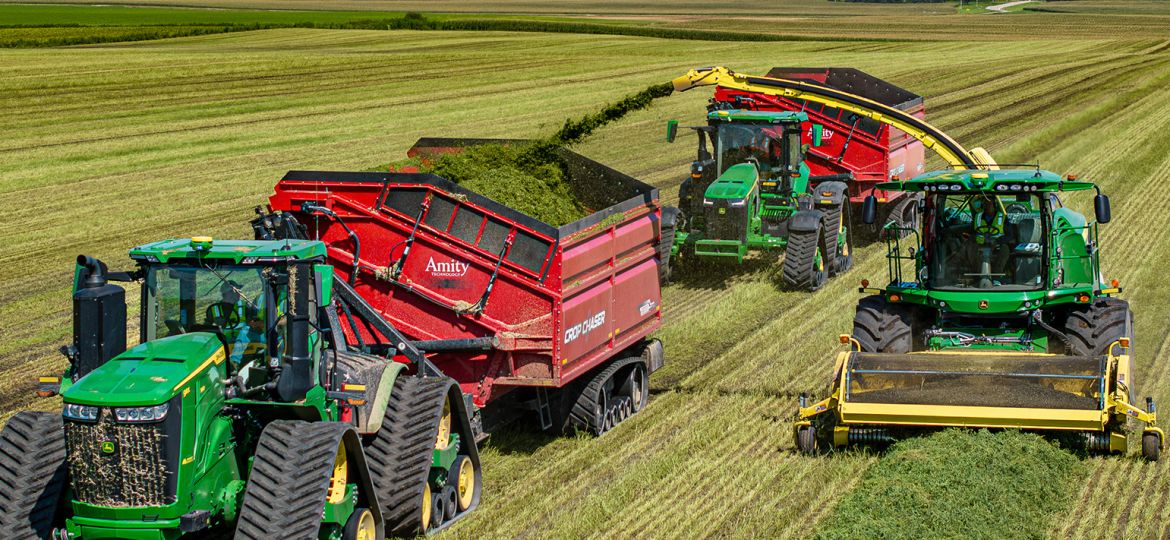

Originally developed by closely working with diary producers, the Crop Chaser easily transitions between crops with minimal parts change, saving valuable time in a busy season. Simply put on or take off the grain chutes and install or remove the beet bar depending on the crop you’re harvesting. The Crop Chaser is field-proven to work in a variety of crops like forage, corn, sugar beets, soybeans, and edible beans, plus anything that will work with a dump cart.
Field-proven solutions™

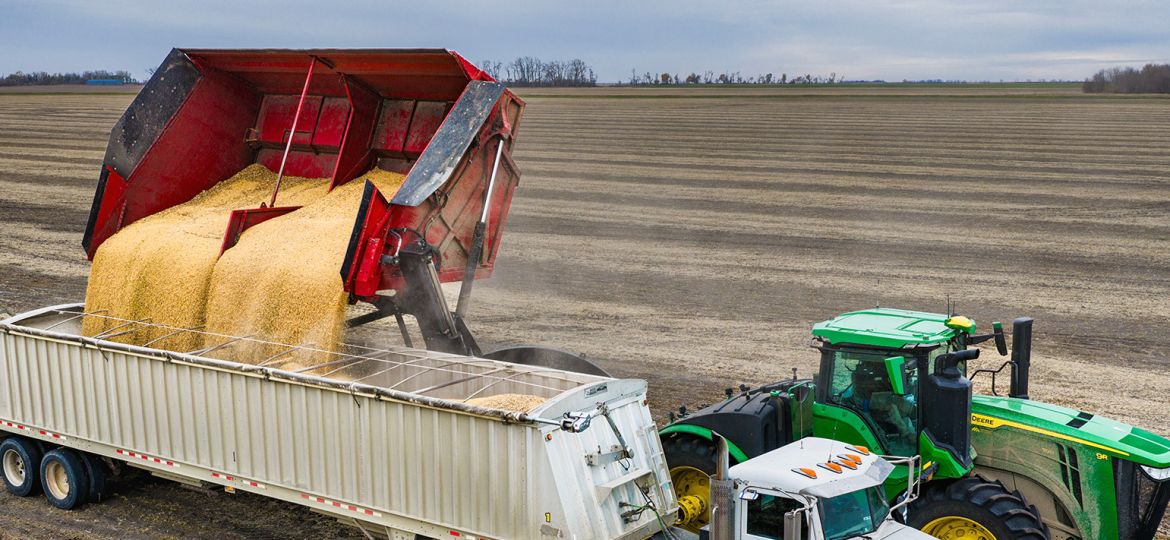

Fill a Semi

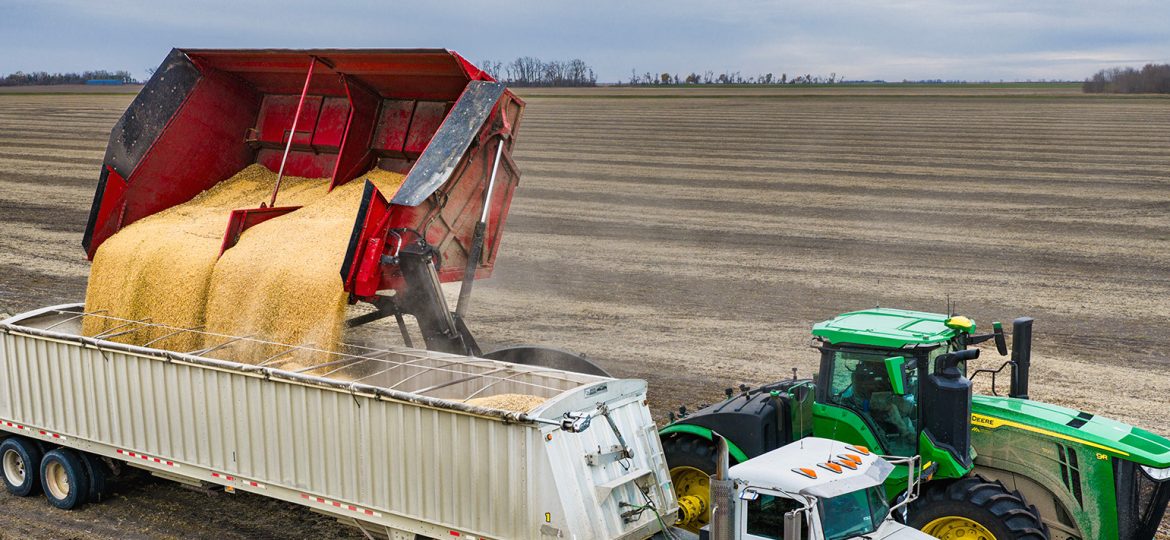

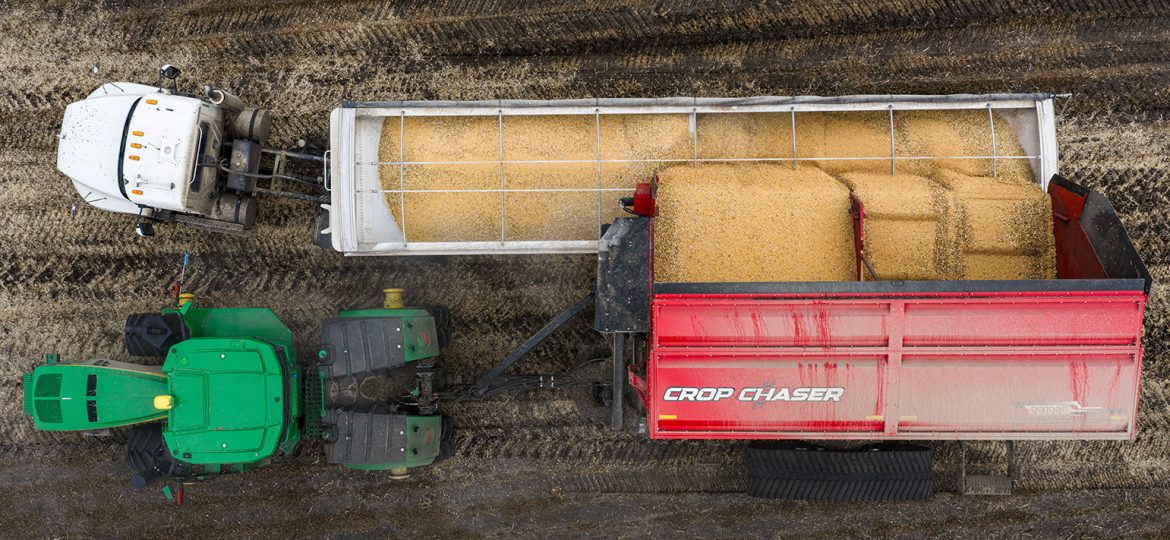

The size of the Crop Chaser makes it possible to fill a semi-trailer with one dump. This ratio allow you to have the most efficient harvest system on the market. No waiting around for another truck or another cart—simply fill, dump, and go!
Live unload chains
Live unload chains on the Crop Chaser 1000 help to even out loads while getting the maximum capacity on the truck. Crop Chaser uses four hydraulic remotes for the tank lift cylinders and front/rear unload chains for maximum control over the dump rate.
Crop Chaser 1000 Features
Onboard scale
Crop Chaser’s onboard scale system provides a highly accurate weight measurement for loading the cart and unloading into the truck. Paired with the Libra Cart app available for both Apple and Android devices, the Crop Chaser can be set to your specifications while avoiding overweight truck loads.
Work Lights/cameras
Work lights provide excellent visibility in times of low natural light. Optional camera systems monitor the loading and unloading process from the cab of the tractor for added control.
Tracks
Crop Chaser Multi-crop carts feature industry leading 36″ x 136″ tracks, which are rated for speeds of up to 20 miles per hour. Tracks minimize compaction and are much better suited for use in wet conditions than competitive carts with tires. When fully loaded, the CC1000 only exerts 16.0 psi with a load of 80,000 pounds.
| Volume Capacity (Struck) | 2,100 ft3 |
| Tank Discharge Length | 20′ 6″ |
| Loading Side Height | 11′ |
| Ground Compaction (fully loaded) | 16 psi |
| Weight | 52,000 lbs |
| Height | 13′ 6″ |
| Length | 35′ 5″ |
| Width | 14′ |
Lift/Dump Capacity by Pin Location | |||
| Pin Location | |||
| 1 (top) | 2 (middle) | 3 (bottom) | |
| Lift Capacity | 65,000 lbs | 72,000 lbs | 80,000 lbs |
| Dump Height (max) | 11′ 10″ | 12′ 8″ | 13′ 3″ |
| Dump Height (min) | 6′ 4″ | 7′ 2″ | 7′ 9″ |
| Dump Angle (max) | 43° | 26° | 13° |
Tractor Requirements | |
| Weight (min) | 34,700 lbs |
| Horsepower (min) | 400 |
| Hydraulic Remotes | 4-6 |
| Net Hydraulic Capacity Volume (min) | 15 gal |
| Hydraulic Flow | 42 gpm |
| Hydraulic Pressure | 2,700 psi |
