Дефолиаторы серии 50
Is defoliation your limitation?
Amity Technology 50 Series Defoliators are engineered to match harvester speed with the ability to properly defoliate at 5 mph vs. 3 mph with traditional defoliators. There is no need to work acres ahead. 50 Series defoliators enable the use of the natural insulation of the crop canopy in hot or cold conditions, keeping you harvesting faster and longer.

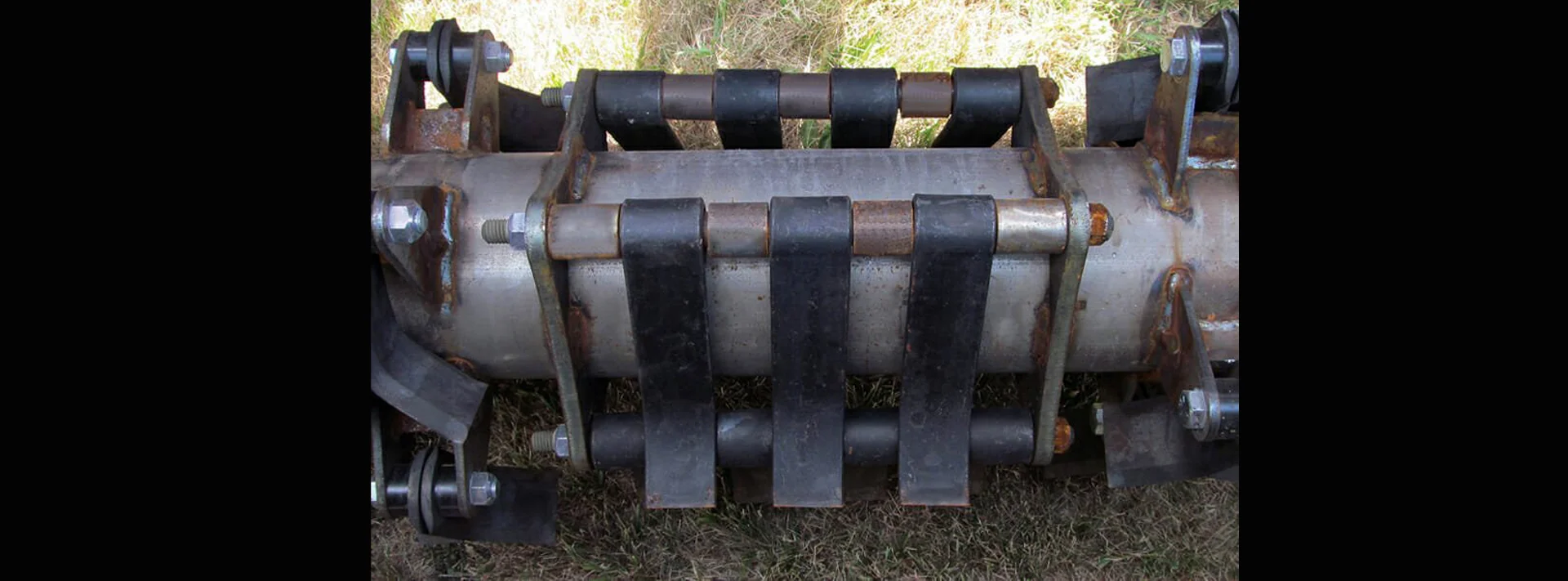

The Heart of the Machine
The heart of the 50 Series defoliators is the Amity shrouded, combination steel front drum. The vacuum effect created by the cup flails over the rows lift and cut the leaves. Then the leaves are directed to the L-knives, which finely size and distribute the leaves between the rows.

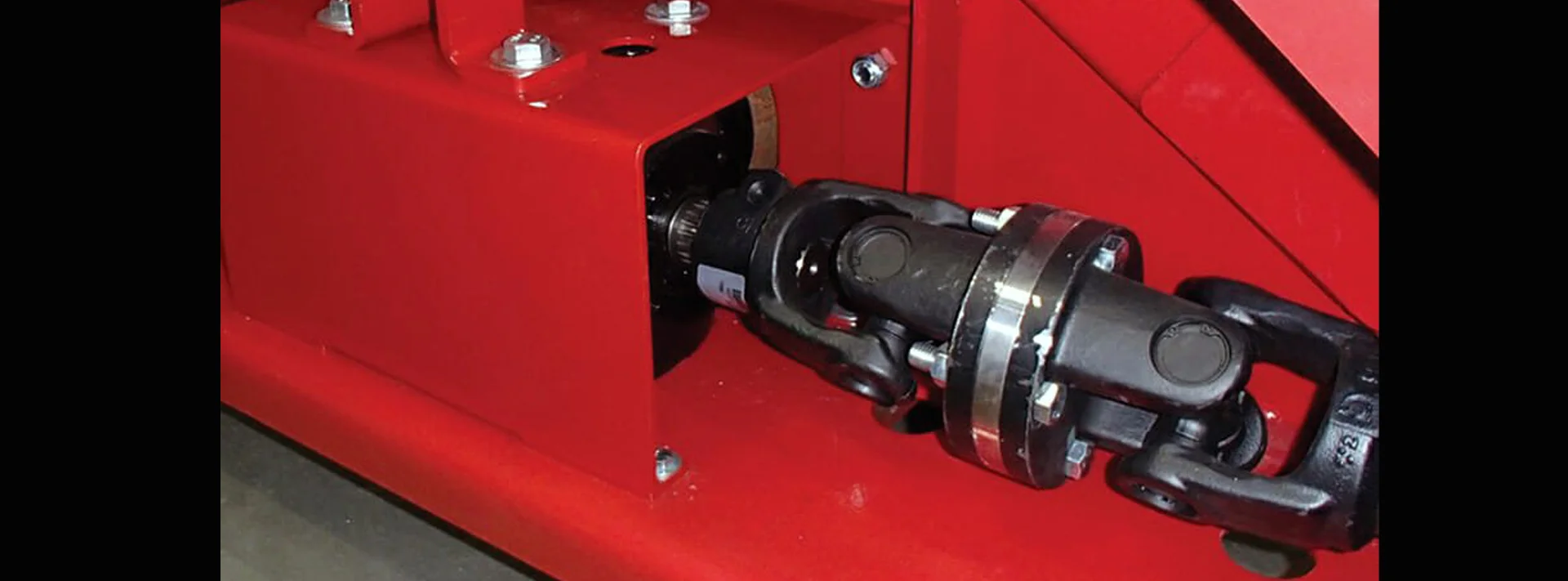

Exclusive Gearbox Drive
Amity Technology features the exclusive all gearbox drive on all defoliator models. Engineered to the power required, these boxes efficiently transfer low-maintenance power without belts or chains.
Service and Support
With the best dealer network, Amity Technology parts and service are available when you need them most!
Model Options
Amity 50 Series Defoliators come in 6 row 22″ to 12 row 22″ models.
3450: 6R/22 and 6R/24

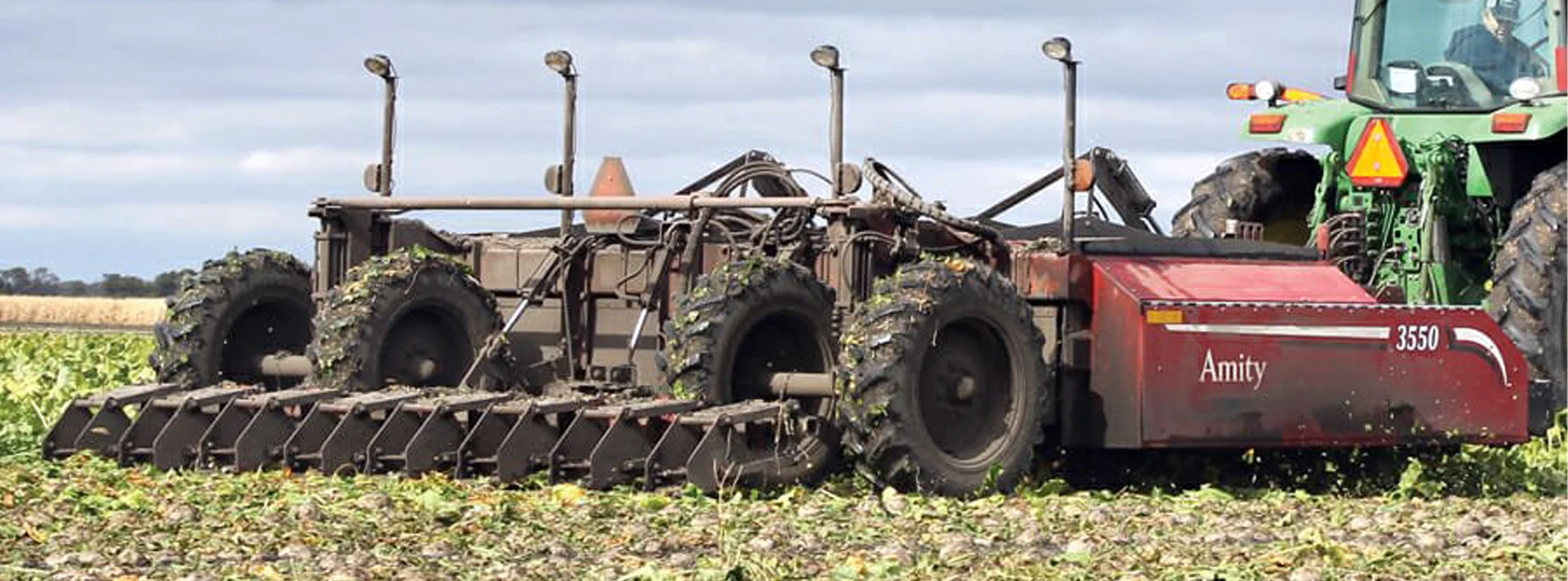

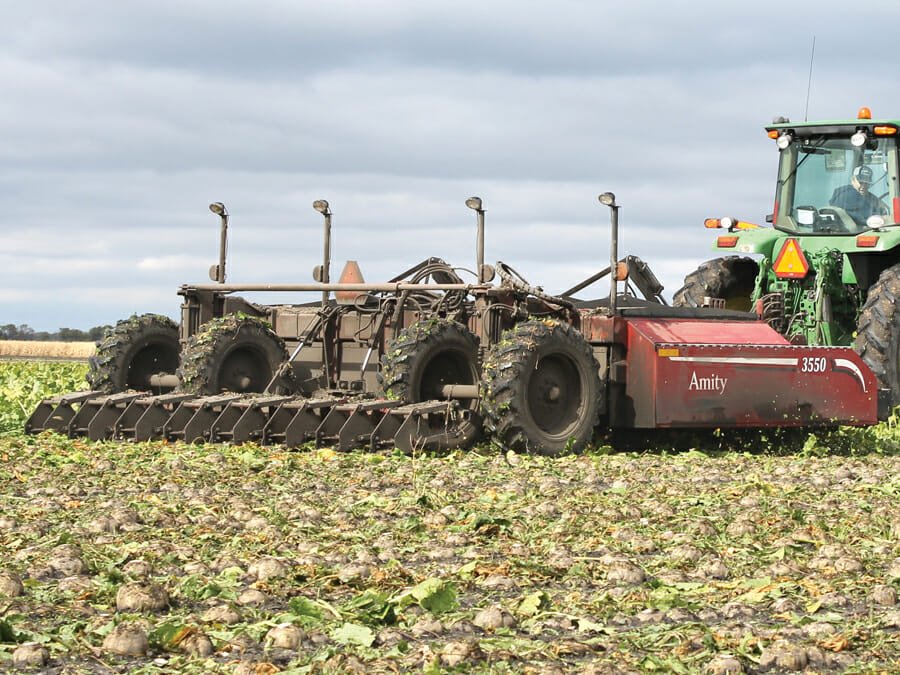

3550: 6R30 and 8R/22
3750: 8R/30 and 12R/22
Варианты бичей и ножей

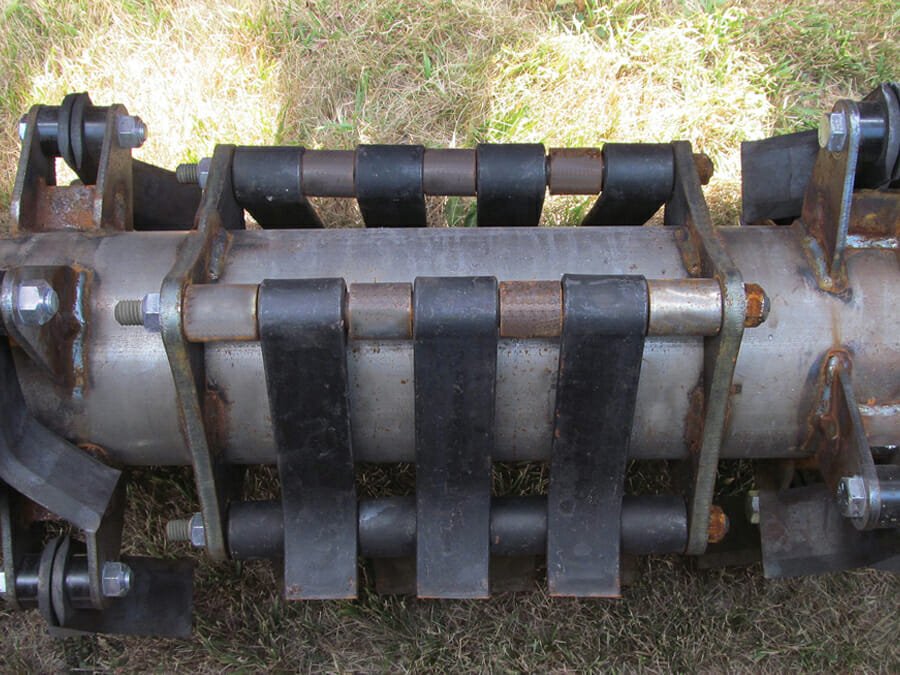

Three-drum 50 Series Defoliators are available with a variety of flail configurations.
Front Drum
- Combination steep cup/L-knife
Drum 2 (10 pin)
- Patented studded flail
- Multiple rubber options
Drum 3 (6 pin)
- Split flail
- Multiple rubber options

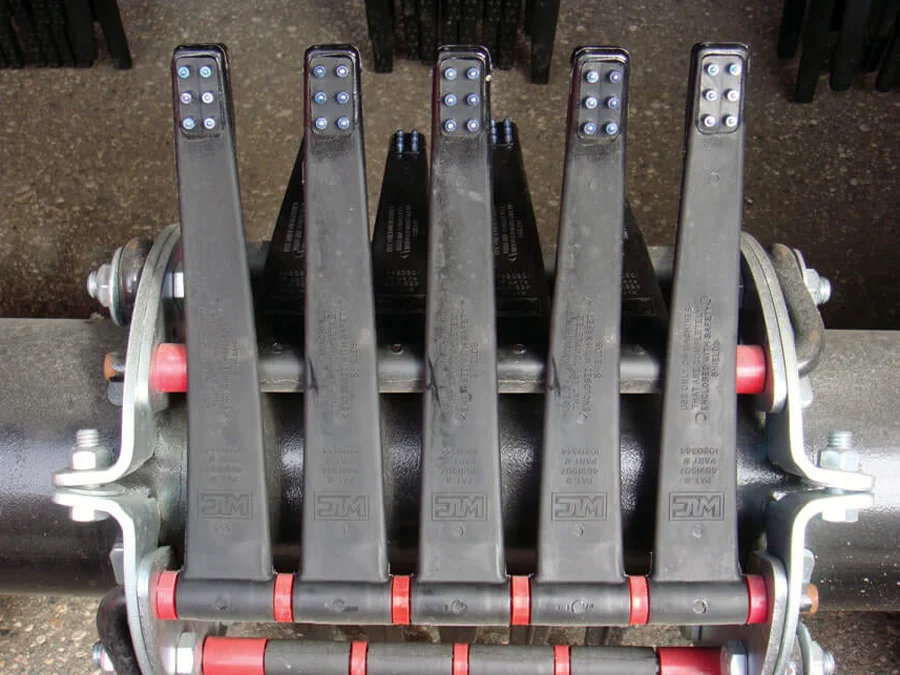

Patented Studded Flail

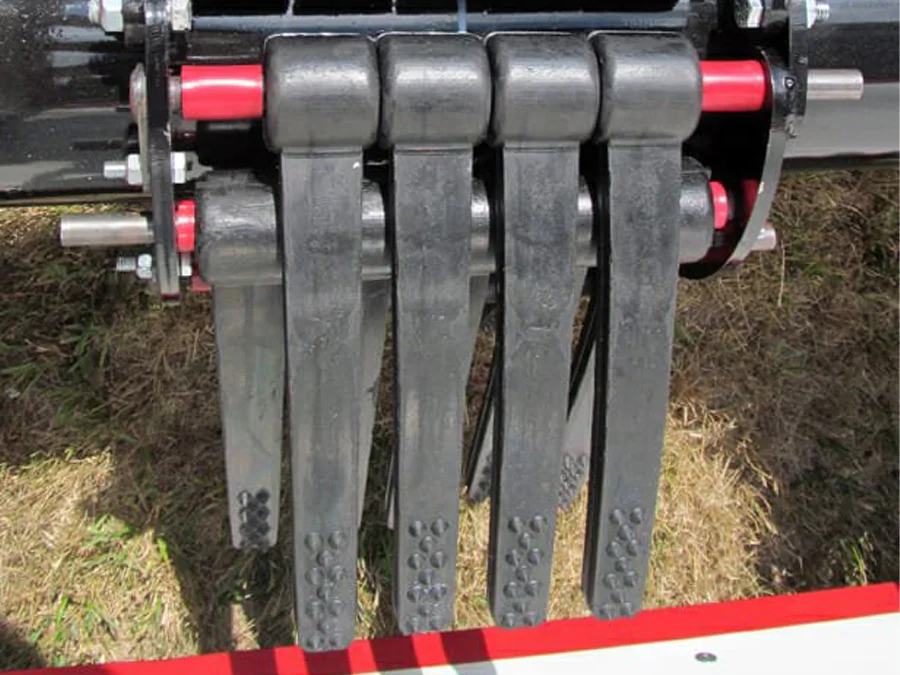

1″ Tapered Flail

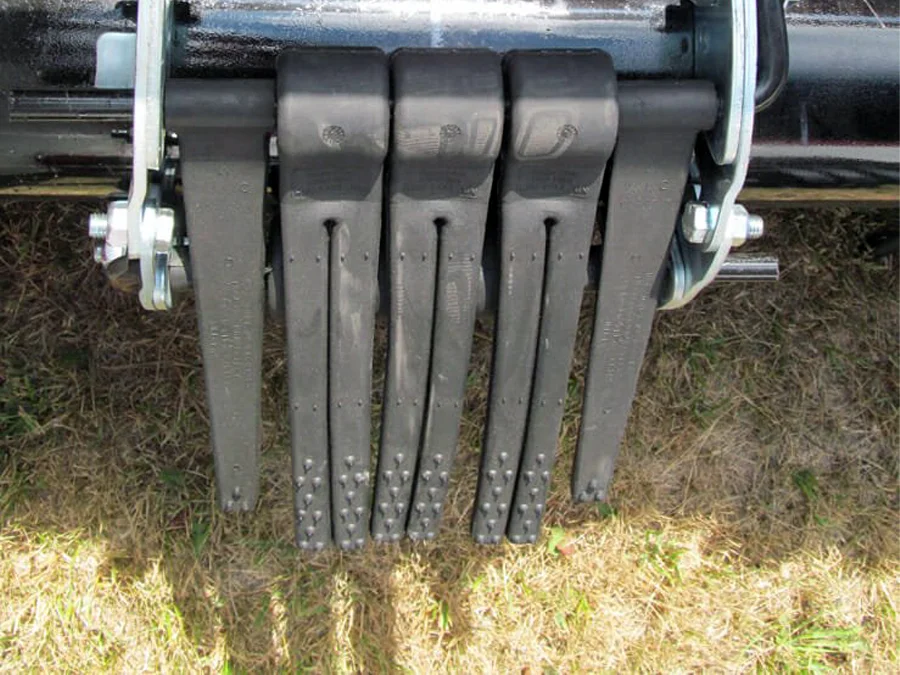

Split Flail

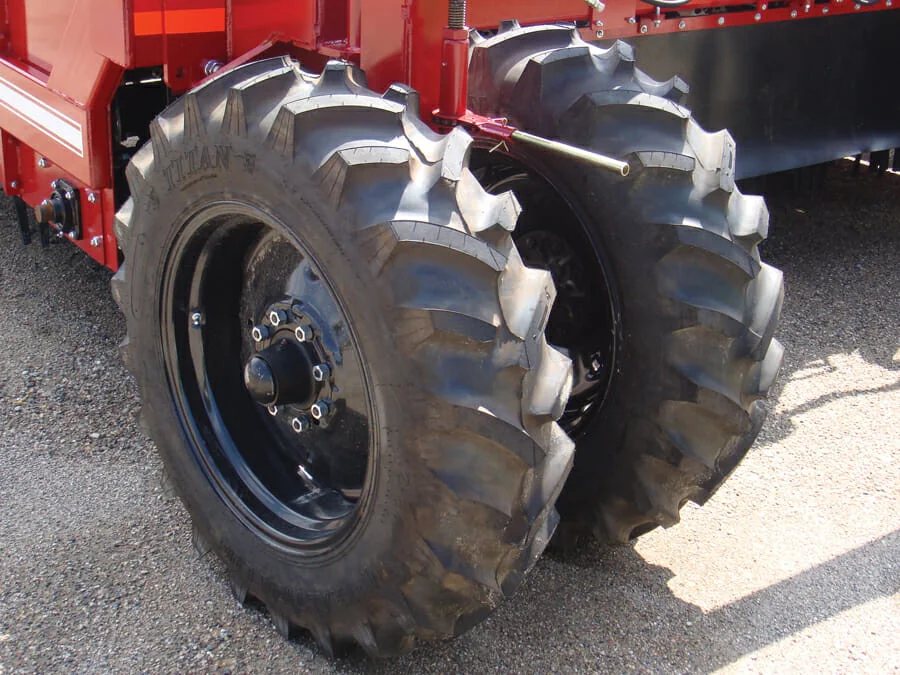

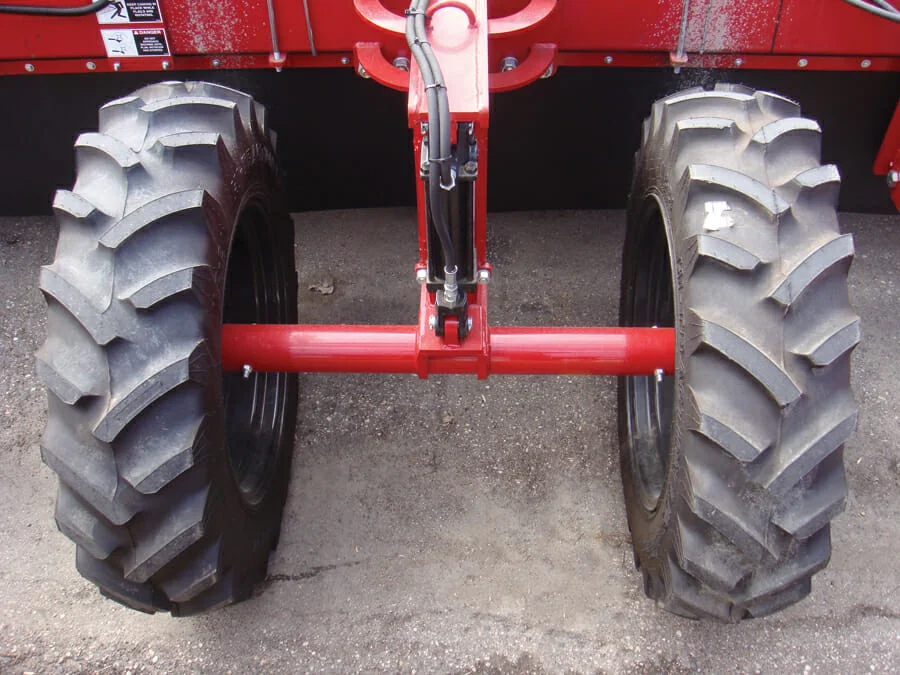

Carrying Struts
Amity Technology Defoliators are available with steerable or non-steerable rear strut cylinders. Offset rear carrying struts defend against pivot tracks.
22″/30″
44″
Offset 22″
В базовой комплектации
- 22″/30″ 11.2×24*
- 44″ 11.2×24*
- Offset 22″ 11.2×24
* AHC compatible
Steerable
- 22″ 11.2×24*
- 44″ 11.2×24*
- Offset 22″ 11.2×24
Field-proven Solutions™
Автоматический контроль высоты
Active Height Control (AHC) on Amity defoliators is a major advancement on Amity Technology defoliators. The ever-changing field dynamics during sugar beet harvest can create challenges. AHC provides the tools for the job.
Sensors mounted on the rear of the machine, either on a skid or a scalper (depending on your operation), monitor the average beet height in comparison to the ground level, keeping the defoliator where you want it. Overall, this provides the operator with tools for the job.
ISOBUS control eliminates the need for additional screens.
Освещение повышенной яркости для лучшей обзорности
50 Серия Дефолиатор Особенности

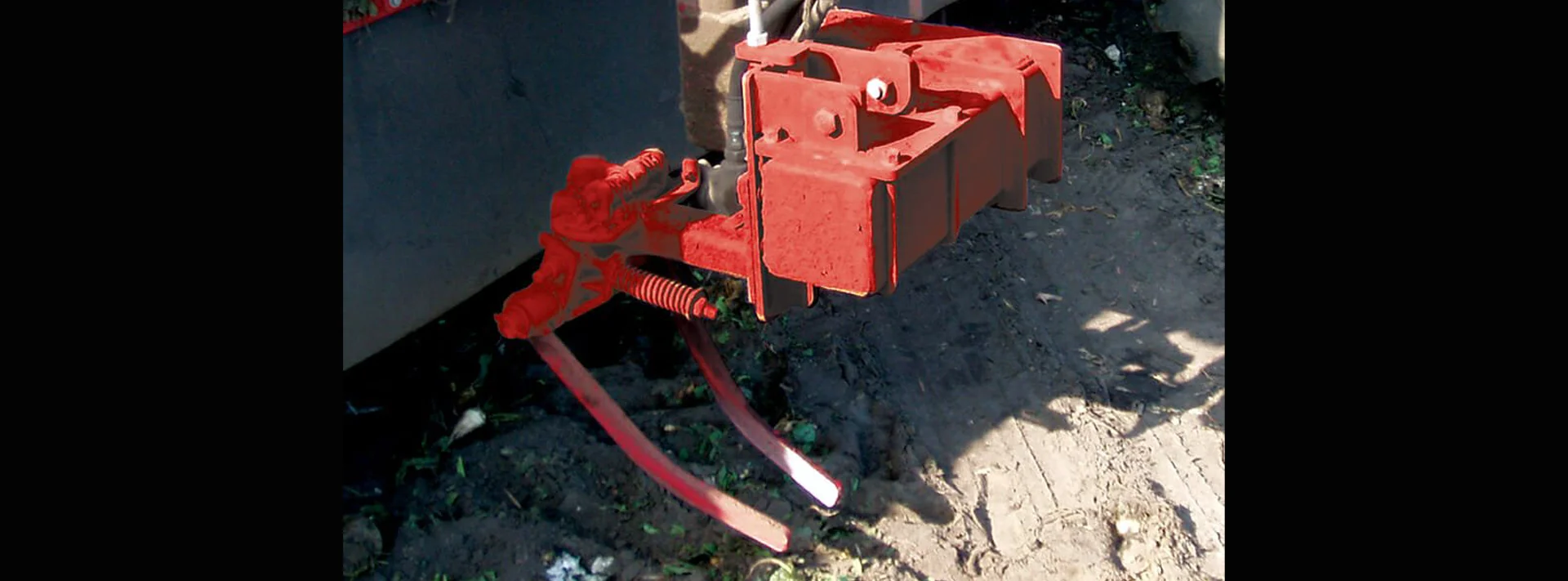

Поиск строк
The optional row finder mounts to either the frame or the scalper bar, providing a clear path for the harvester.

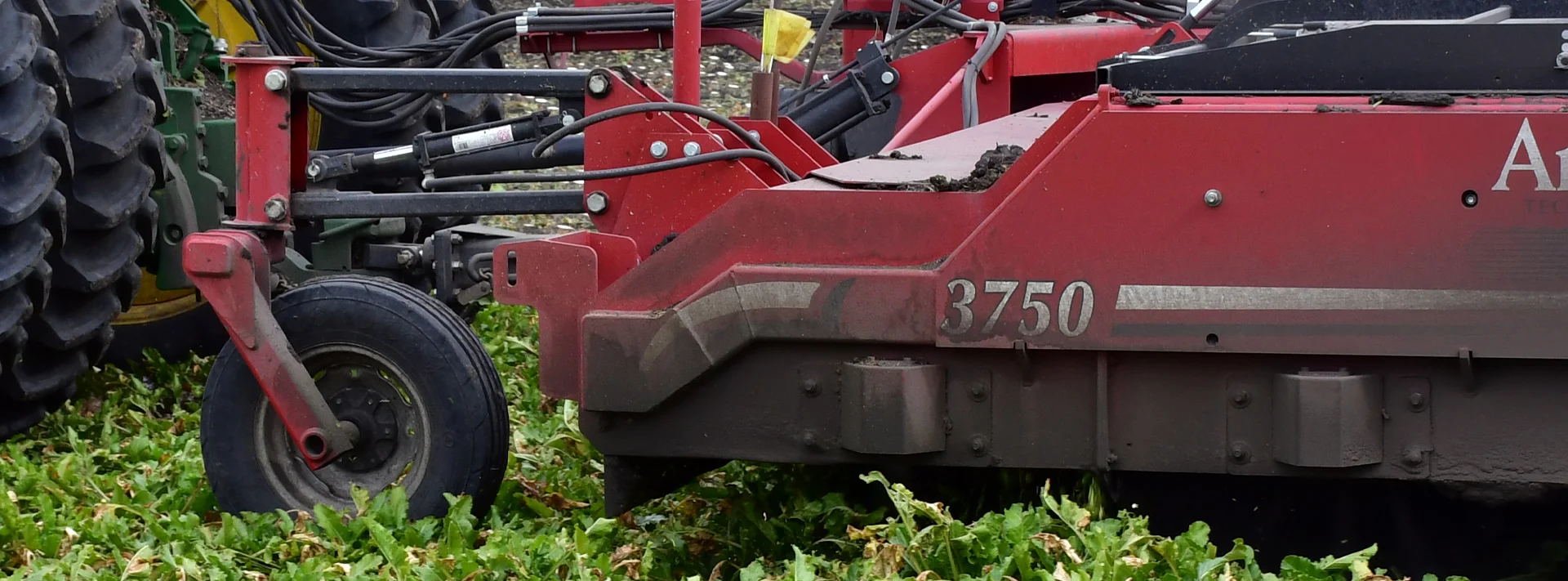

Dynamic Stabilizer Wheels
Optional Dynamic Stabilizer Wheels (DSW) provide smooth travel through the field. DSW is available in castering or non-castering to meet the needs of the operation.

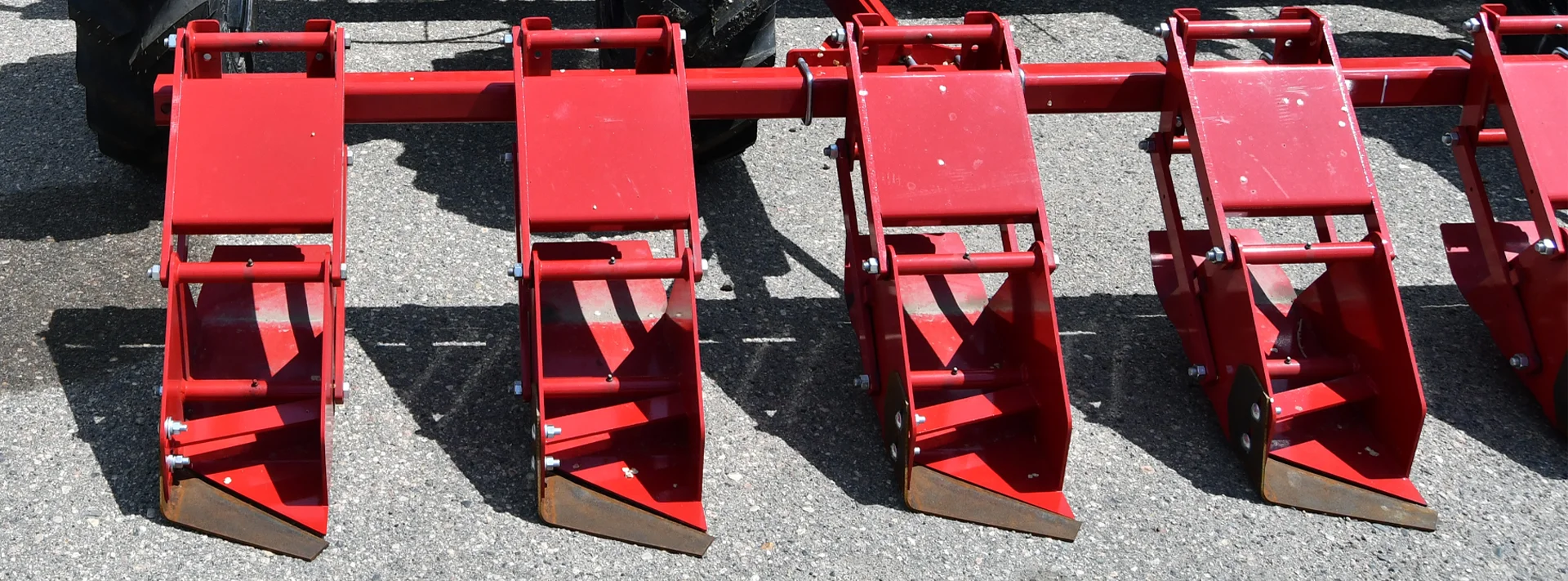

Optional Scalpers
Amity defoliators are available with optional knife scalpers.
подвеска для вала отбора мощности
The PTO hanger keeps the PTO shaft off the ground and clean.
Дефолиаторы серии 50 | 3750 | 3550 | 3450 |
|---|---|---|---|
| Количество рядков | 8 - 12 | 6 - 8 | 6 |
| Междурядье | 51 - 76 см | 51 - 76 см | 51 - 62 см |
| Общая масса | 6 895 кг | 6 169 кг | 5 216 кг |
| Сцепной вес | 2 744 кг | 2 268 кг | 1 996 кг |
| Длина без дорезателей | 5,94 м | 5,94 м | 5,94 м |
| Ширина | 7,30 м | 4,88 м | 4,06 м |
| Высота | 2,13 м | 2,13 м | 2,13 м |
| Рекомендованная | |||
| Рабочая скорость | 4,83 - 9,66 км/ч | 4,83 - 9,66 км/ч | 4,83 - 9,66 км/ч |
| Максимальная скорость при транспортировке | |||
| Скорость при транспортировке | 40 км/ч | 40 км/ч | 40 км/ч |
| Мощность трактора (минимум):: | |||
| Рекомендованная мощность (ВОМ) | 215 л.с. | 160 л.с. | 130 л.с. |
| Обороты ВОМ | 1 000 об/мин | 1 000 об/мин | 1 000 об/мин |
| Сцепное устройство | |||
| Вертикальная нагрузка | 2 721 кг | 2 268 кг | 2 268 кг |
| Производительность гидросистемы | 114 л/мин | 114 л/мин | 114 л/мин |
| Давление в гидросистеме | 2 700 psi (18 616 кПа) | 2 700 psi (18 616 кПа) | 2 700 psi (18 616 кПа) |
