50 Series Defoliators
Is defoliation your limitation?
Amity Technology 50 Series Defoliators are engineered to match harvester speed with the ability to properly defoliate at 5 mph vs. 3 mph with traditional defoliators. There is no need to work acres ahead. 50 Series defoliators enable the use of the natural insulation of the crop canopy in hot or cold conditions, keeping you harvesting faster and longer.
The Heart of the Machine
The heart of the 50 Series defoliators is the Amity shrouded, combination steel front drum. The vacuum effect created by the cup flails over the rows lift and cut the leaves. Then the leaves are directed to the L-knives, which finely size and distribute the leaves between the rows.
Exclusive Gearbox Drive
Amity Technology features the exclusive all gearbox drive on all defoliator models. Engineered to the power required, these boxes efficiently transfer low-maintenance power without belts or chains.
Service and Support
With the best dealer network, Amity Technology parts and service are available when you need them most!
Model Options
Amity 50 Series Defoliators come in 6 row 22″ to 12 row 22″ models.
3450: 6R/22 and 6R/24
3550: 6R30 and 8R/22
3750: 8R/30 and 12R/22
Flail Options
Three-drum 50 Series Defoliators are available with a variety of flail configurations.
Front Drum
- Combination steep cup/L-knife
Drum 2 (10 pin)
- Patented studded flail
- Multiple rubber options
Drum 3 (6 pin)
- Split flail
- Multiple rubber options
Patented Studded Flail
1″ Tapered Flail
Split Flail
Carrying Struts
Amity Technology Defoliators are available with steerable or non-steerable rear strut cylinders. Offset rear carrying struts defend against pivot tracks.
22″/30″
44″
Offset 22″
Standard
- 22″/30″ 11.2×24*
- 44″ 11.2×24*
- Offset 22″ 11.2×24
* AHC compatible
Steerable
- 22″ 11.2×24*
- 44″ 11.2×24*
- Offset 22″ 11.2×24
Field-proven Solutions™
Active Height Control
Active Height Control (AHC) on Amity defoliators is a major advancement on Amity Technology defoliators. The ever-changing field dynamics during sugar beet harvest can create challenges. AHC provides the tools for the job.
Sensors mounted on the rear of the machine, either on a skid or a scalper (depending on your operation), monitor the average beet height in comparison to the ground level, keeping the defoliator where you want it. Overall, this provides the operator with tools for the job.
ISOBUS control eliminates the need for additional screens.

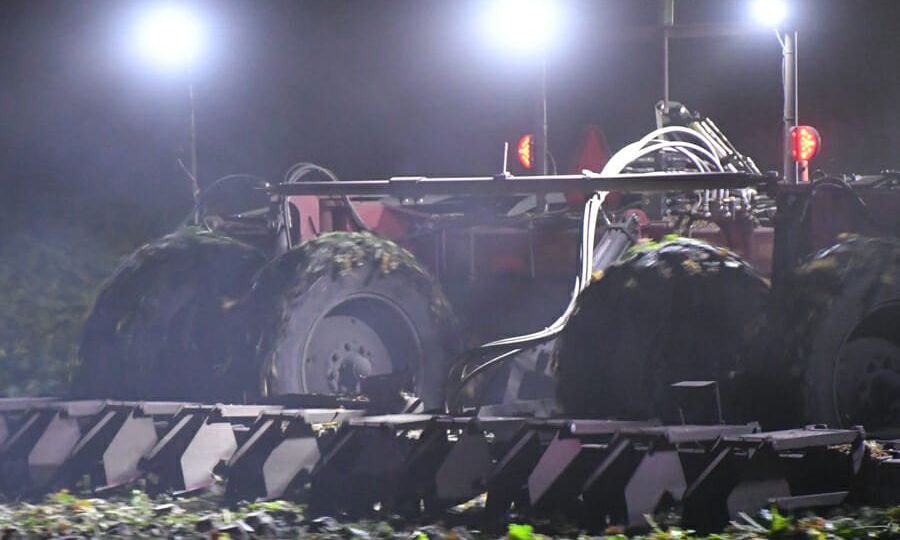

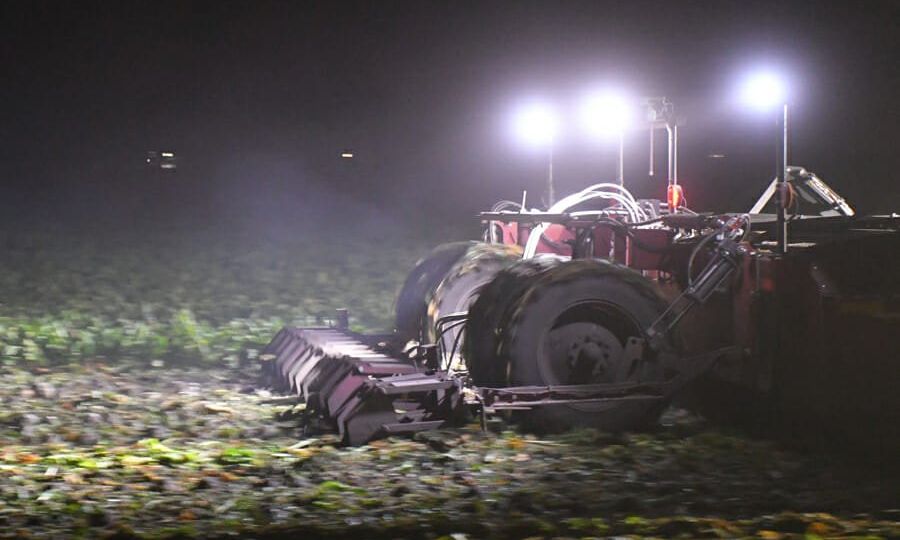

Bright Lights for Better Visibility
50 Series Defoliator Features
Row Finder
The optional row finder mounts to either the frame or the scalper bar, providing a clear path for the harvester.
Dynamic Stabilizer Wheels
Optional Dynamic Stabilizer Wheels (DSW) provide smooth travel through the field. DSW is available in castering or non-castering to meet the needs of the operation.
Optional Scalpers
Amity defoliators are available with optional knife scalpers.
PTO Hanger
The PTO hanger keeps the PTO shaft off the ground and clean.
50 Series Defoliators | 3750 | 3550 | 3450 |
|---|---|---|---|
| Number of Rows | 8 to 12 | 6 to 8 | 6 |
| Row Spacing | 20-30″ | 20-30″ | 20-24″ |
| Total Weight | 15,200 lbs | 13,200 lbs | 11,500 lbs |
| Hitch Weight | 6,050 lbs | 5,000 lbs | 4,400 lbs |
| Length w/o scalpers | 19′ 6″ | 19′ 6″ | 19′ 6″ |
| Width | 23′ 11″ | 16′ 0″ | 13′ 4″ |
| Height | 7′ 0″ | 7′ 0″ | 7′ 0″ |
| Recommended | |||
| Working Speed | 3-6 mph | 3-6 mph | 3-6 mph |
| Maximum Road | |||
| Travel Speed | 25 mph | 25 mph | 25 mph |
| Tractor Requirements (minimum): | |||
| Recommended Power (PTO) | 215 hp | 160 hp | 130 hp |
| PTO Speed | 1,000 rpm | 1,000 rpm | 1,000 rpm |
| Drawbar | |||
| Vertical Load | 6,000 lbs | 5,000 lbs | 5,000 lbs |
| Hydraulic Capacity | 30 gpm | 30 gpm | 30 gpm |
| Hydraulic Pressure | 2,700 psi | 2,700 psi | 2,700 psi |
