Soil Samplers

Automated Soil Sampling

Reduce time in the field at the end of the season with our robust soil sampling units. Auger-style probes provide a consistent sampling depth, maintained without lifting the mounted vehicle. A wide range of probes and augers are available for all your agriculture and environmental testing needs.

And because these units are built by Amity Technology, you know they are made with quality. There are 4 models to choose from.

Amity soil samplers are the most economical automated soil samplers on the market, starting at $3,250 for an in-cab model.

Download the Soil Samplers Literature

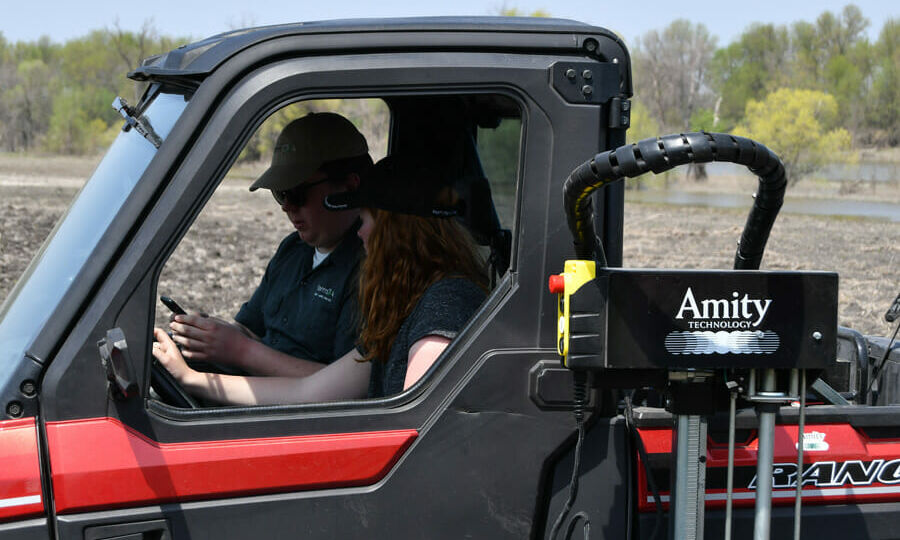

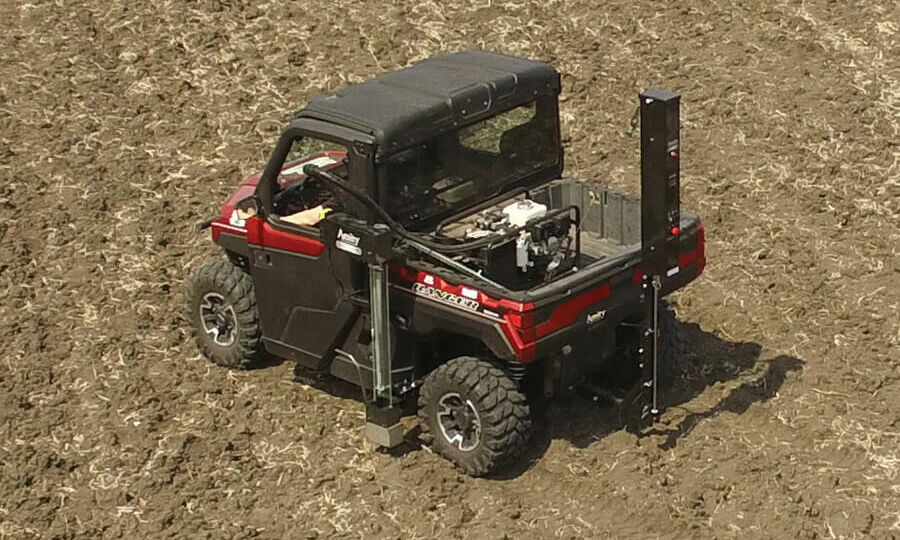

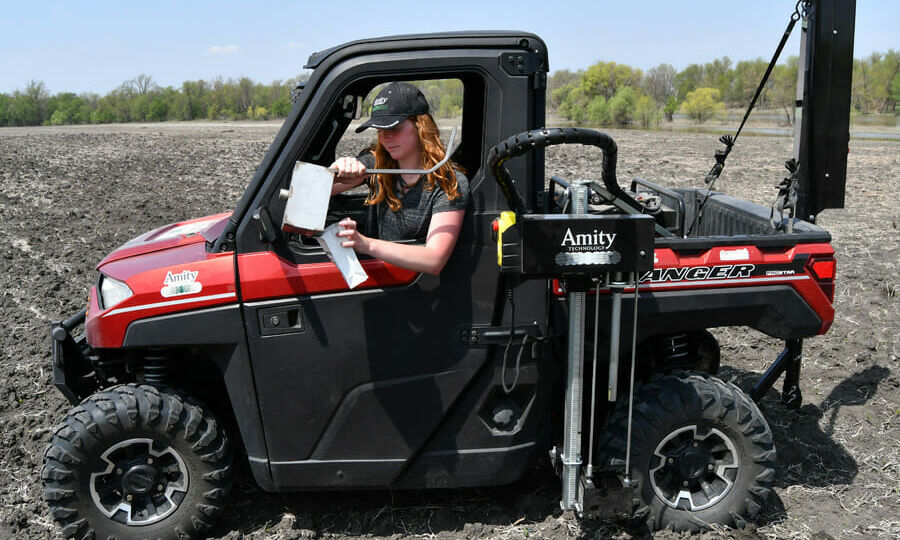

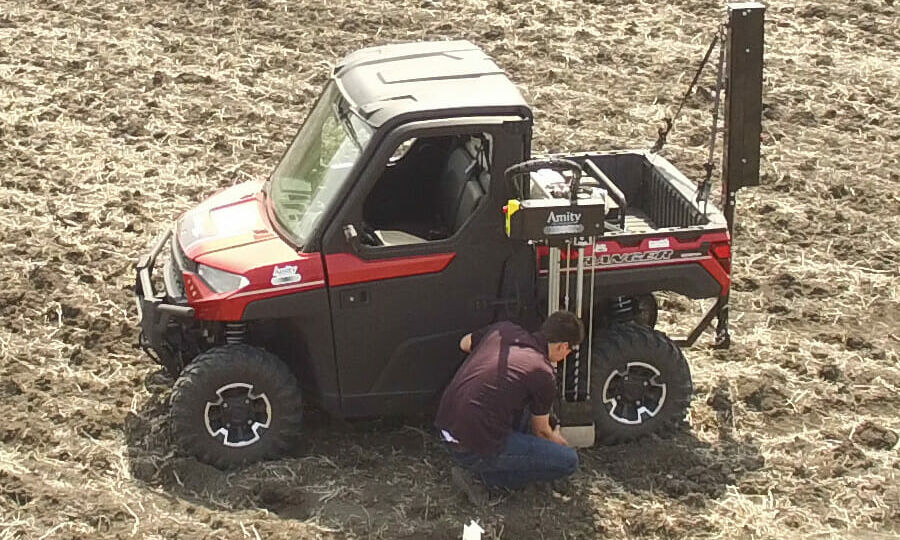

3000 Series Soil Sampler
for ATV and UTV

ATV mounted automatic hydraulic soil samplers collect up to 20 samples at a time.

ATV/UTV mounted Amity Technology soil samplers have a smaller, lighter platform. They have a specially designed, carbide-tipped auger that allow sampling of all types of soil, including frozen ground. The extremely fast cycle time of 10-22 seconds lets you collect more soil samples in less time to cover your fields faster.

The 3036 model samples to 36 inches and is ideal for carbon sampling.

Features/Specifications
  • Automated collection of up to 20 samples
  • 1×12 in. diameter auger (2012), ¾x24 in. (2024), ¾x36 in. (2036)
  • Special designed carbide tipped auger
  • Low profile
  • Push button controls with cord
  • Sample all types of soil including frozen ground
Sample Depth 0-24 in.
Hydraulic Motors 2
Power Pack 6.5 hp Honda hydraulic
Cycle Time 10-22 sec.
Approx. Weight 210 lbs.
Sample Depth 12 in. (2012), 24 in. (2024), 36 in. (2036)

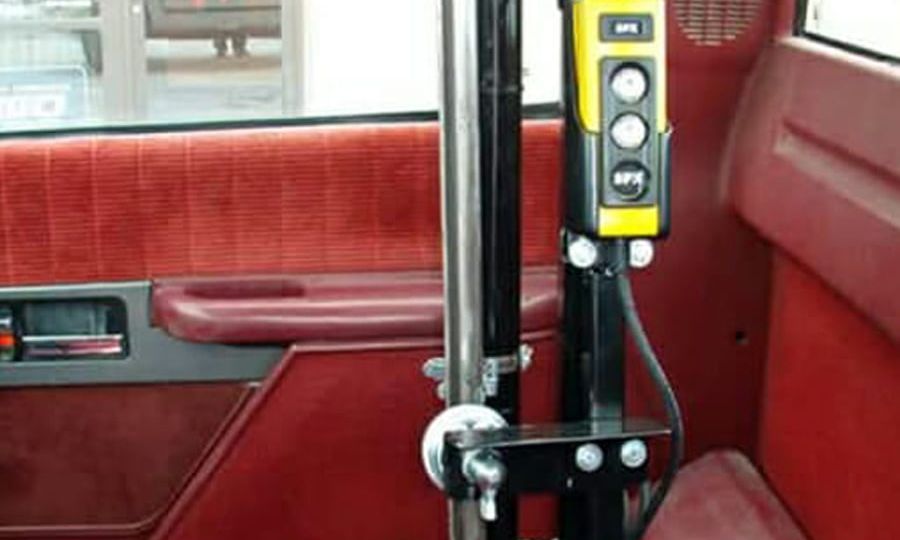

In-cab Soil Sampler

For pickup mounted solutions, our in-cab hydraulic probe provides quality with unparalleled convenience.

The model 2400 in-cab automated hydraulic soil sampler, samples through frozen ground, and its fast cycle time allows for more samples in less time. You can also do everything from the cab of your truck.

Features/Specifications
  • Direct push soil sampler
  • Manual collection of soil samples
  • Quick attach probe
  • Electric over hydraulic power unit
  • Push button controls with cord
  • Dry tip and wet tip options
  • Samples in frozen ground up to 24 inches
Down Force 6,000 lbs.
Cylinder 1.75 in. bore x 30 in. stroke
Cycle Time 11-17 seconds
Approx. Weight 210 lbs.

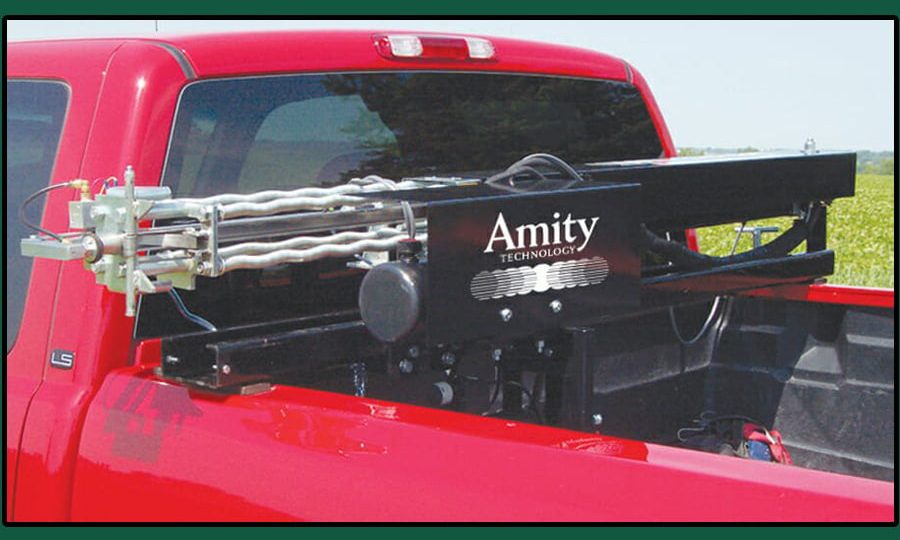

Pickup-mounted Soil Sampler

The model 2450 pick-up mounted automated hydraulic soil sampler is engineered to automatically collect up to 25 samples

The push button controls, with a 10-foot cord, let you collect samples without having to get out of the truck cab.

Features/Specifications
  • Automated collection of up to 25 samples
  • Easily adjusts to sampling  position
  • Electric over hydraulic power unit
  • Push button remote control with cord
  • Adjustable height variations for pickup models
  • Stainless steel sampling parts
  • Optional air-blast tip cleaner and dual zone collection system
Sample Depth 0-24 in.
Down Force 3,500 lbs.
Cylinder 1.5 in.
Cycle Time 10-12 sec.
Approx. Weight 225 lbs.

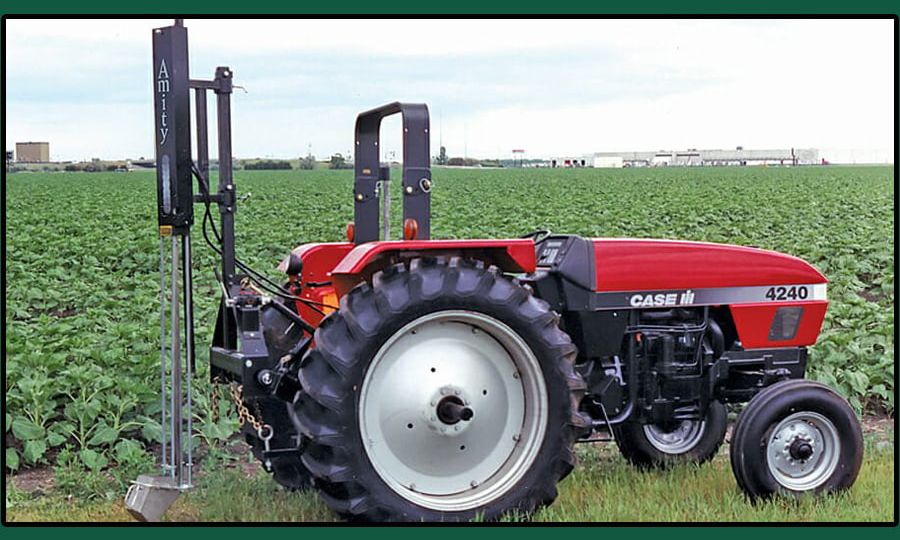

Three-point Hitch-mounted Soil Sampler

When deeper samples are needed to 48″, the 2403 three-point hitch automated hydraulic soil sampler is the best option.

With three depths available, these samplers can be mounted onto any category 1 or 2 three-point hitch, using the tractor’s hydraulics for operation.

Features/Specifications
  • Mounted on any category 1 or 2 hitch
  • Fast cycle time, 12-20 seconds
  • Sample depth of 0 to 48 inches
  • Utilizes the hydraulics from the tractor
Sample Depth 0-48 in.
Hydraulic Motors 0
Sample Time 12-20 sec. (depending on tractor)
Approx. Weight 185 lbs.
Mark sample locations and return with precision with FarmQA

Subscribe to FarmQA for one year and receive free shipping on an Amity soil sampler!

Try FarmQA for two weeks and see if it is right for you!

Easily capture precise sampling locations and return to each site using your device’s navigation system. Click on the map to drop pins at the exact locations following composite, zone, grid, variable rate, or any other way you manage sampling. You can also reduce setup time and view zone information visually by uploading zone maps or sample locations.

FARMQA is a sister-company to Amity Technology that utilizes a cloud-based platform to offer data management from precision agriculture solutions. Some Amity Technology products such as the Compaction Testing System and AquaSpy rely on this platform to utilize their data.
