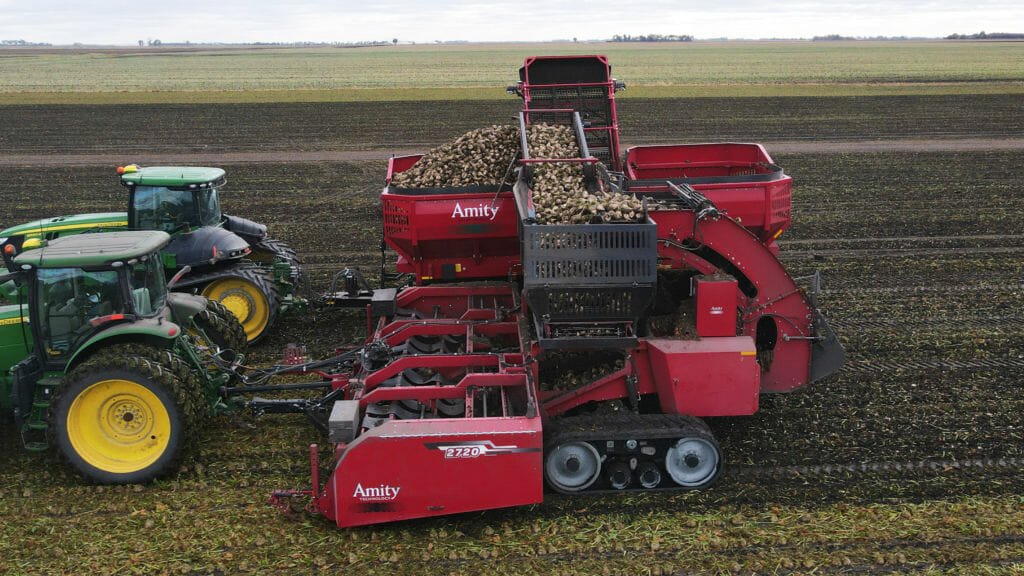

The Amity 2720 Harvester offers 31% more capacity and the ability to get through tough harvest conditions. With a larger volume scrub, higher profile chain, Dynamic Chain Management, new ISOBUS controller, new door design with lighted access, and the option for tracks or larger tires, the 2720 puts you in control even when conditions are less than ideal.

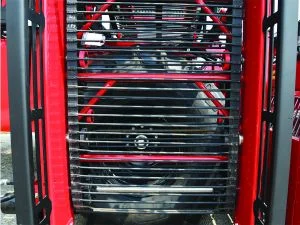

Higher Volume Scrub
A new, higher volume scrub on the 2720 has a volume of 59.8 ft³, compared to 45.5 ft³ on the 2700 scrub – a 31% increase in volume! This large increase will allow you to harvest higher tonnage crops faster. Field tests have shown capacity capabilities well beyond 45 tons at 5 mph.

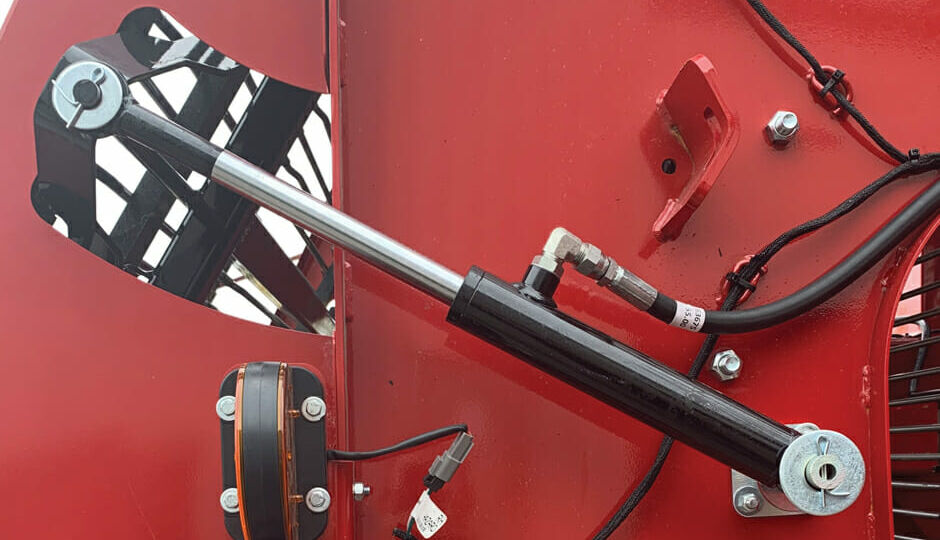

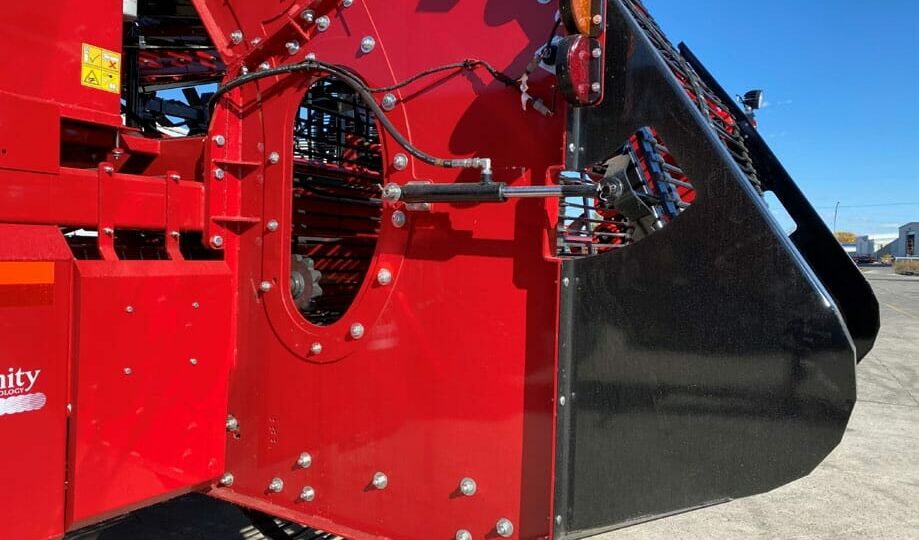

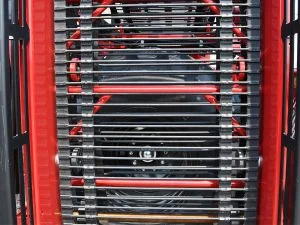

Dynamic Chain Management
Dynamic Chain Management (DCM) maintains proper scrub chain tension during harvest. This advancement in harvester design adapts the scrub chain to sugar beet volume for easier sugar beet flow through the harvester. DCM can allow for higher scrub capacity and field speed. It also reduces scrub chain flexing and extends scrub chain life.

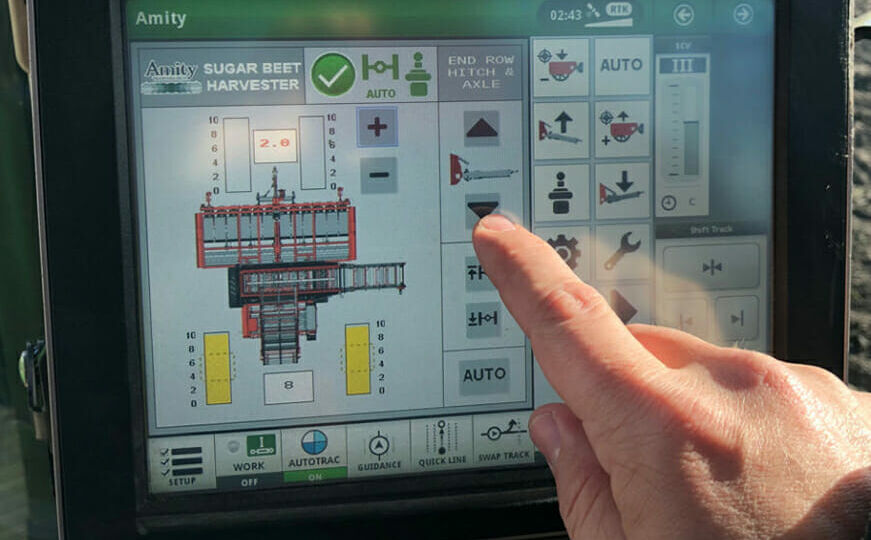

ADC on ISOBUS
Active Depth Control has now become ISOBUS compatible! The software is installed on the unit and will allow ADC to be controlled from any ISOBUS terminal, allowing for fewer screens in the tractor. The user interface has also been dramatically improved to allow for easier, more intuitive operation of the ADC system.
Active Depth Control
Active Depth Control (ADC) on Amity harvesters is a major advancement in efficiency and profitability for your operation. As harvester widths increase, the need for leveling the harvester has become a key component in reducing tare and maximizing root yield.
During normal operation, harvester weight dynamics are constantly changing. As the tank and boom fill and empty and as field conditions go from wet to dry, ADC continuously monitors the digging depth and make adjustments with the hitch and rear cylinders across the machine.
From the monitor in the tractor, the operator sets digging parameters on the circuit board. the sensors, or wands, advise the circuit board of the digging depth. The circuit board then instructs the valve block to make adjustments to the hitch and axle cylinders.
* Restrictions may apply. Consult with your dealer.

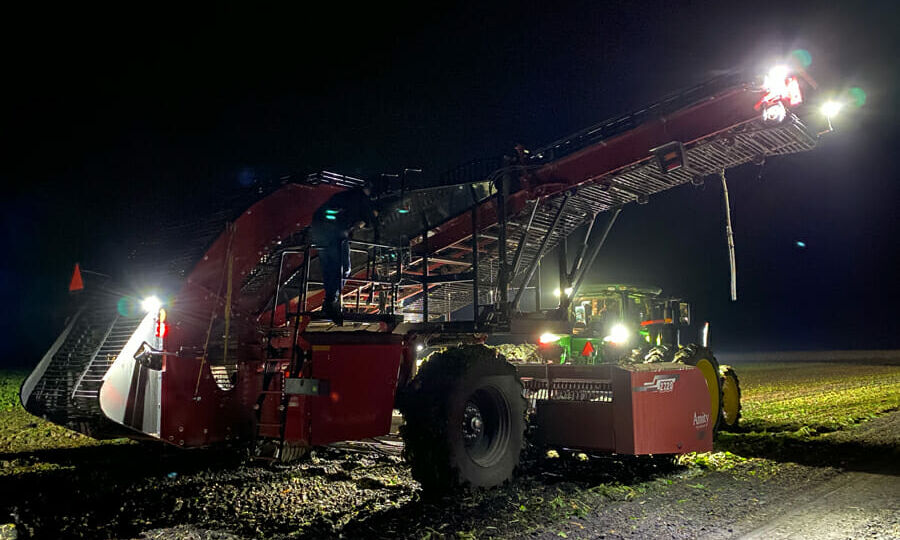

Bright lights for better visibility
Bright lights on the 2720 Harvester provide great visibility throughout the machine. LEDs light up every area for safety and convenience during nighttime operation.

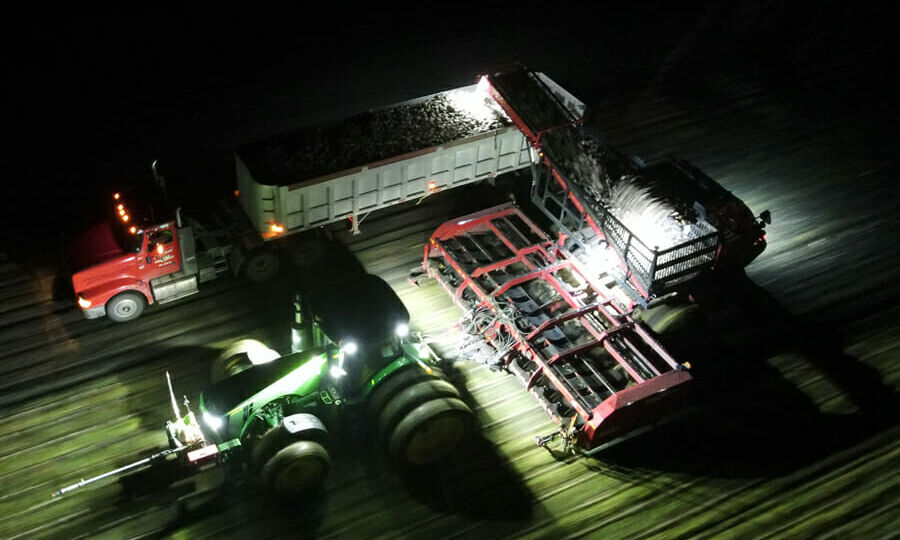

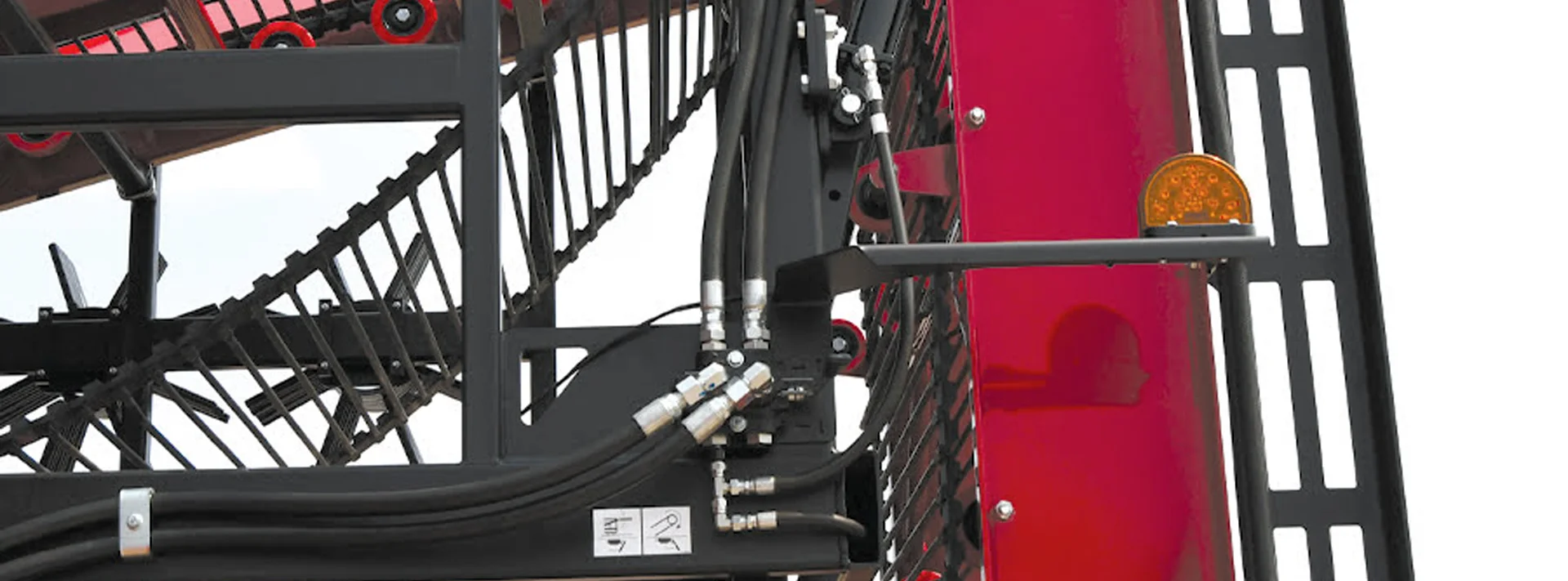

Lights on the boom and scrub tower make night maneuvers safer.

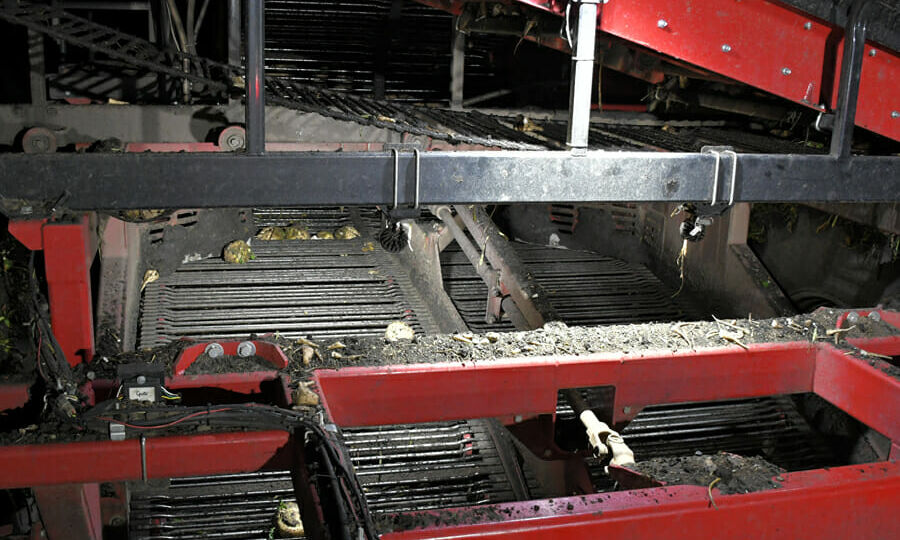

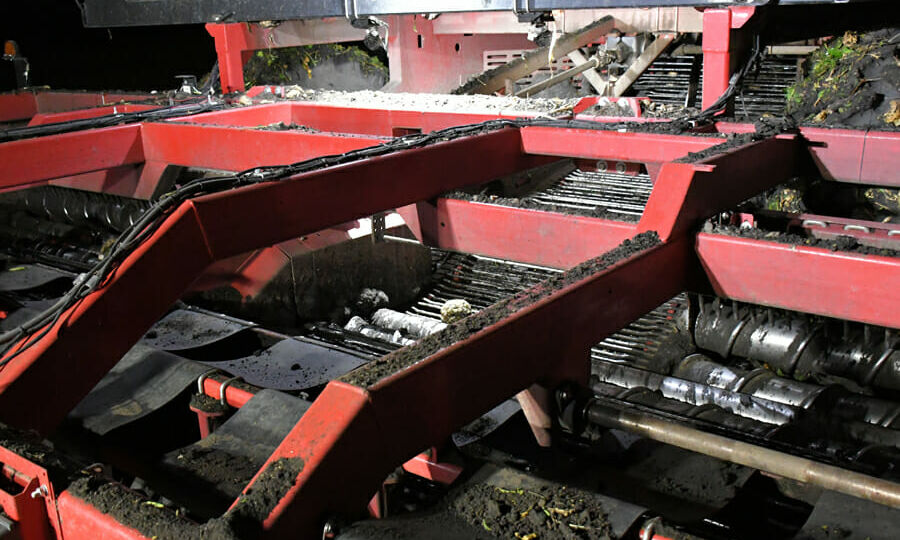

Grabrolls and chains are illuminated for visibility into the machine during operation and maintenance.

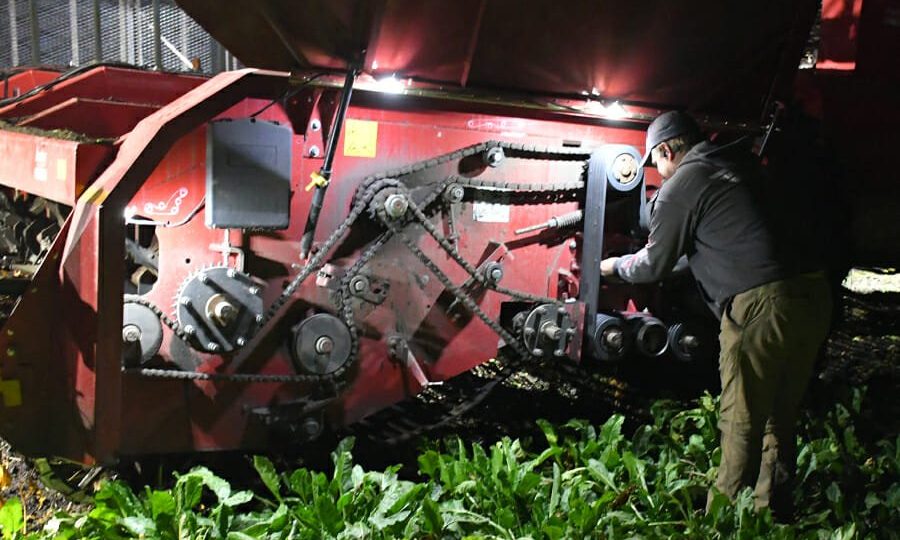

New Door Design with Lighted Access
The new 2720 harvester features a new door design to access the working components of the harvester. Hinged at the top of the door, it keeps walking areas obstacle free.
Additionally, lights inside the access door provide illumination when working in dark conditions.

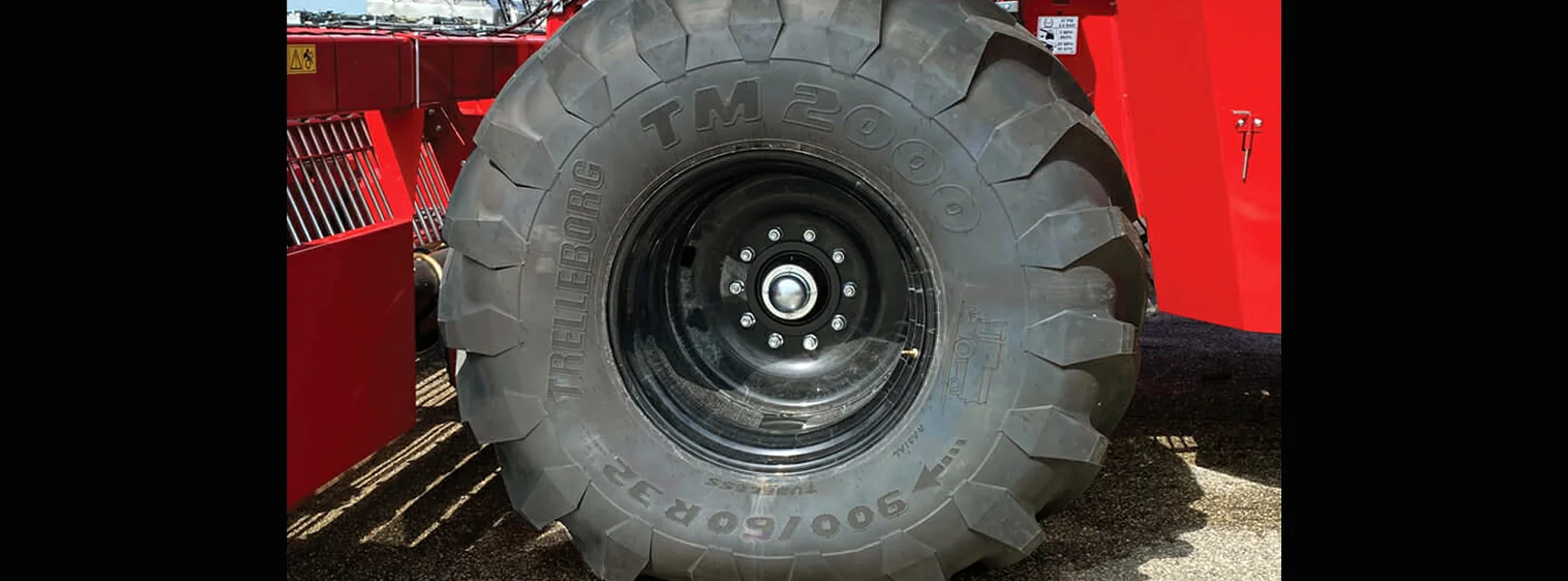

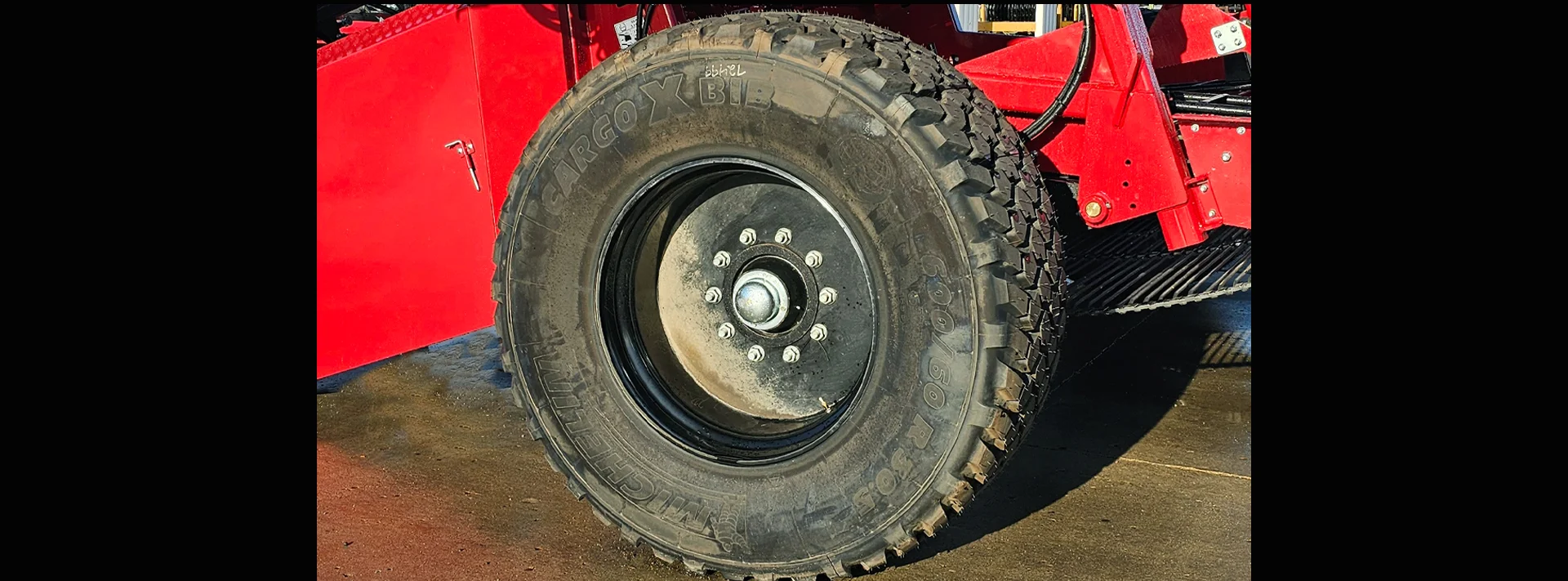

Tire Options – Standard tires, tracks, or 900/60R32 Tires
When conditions are challenging, every advantage is important. The Amity 2720 Harvester is available with standard 710/70R38 tires, 900/60R32 tires or 30×67″ tracks. Our research shows that there is a significant reduction in ground pressure when using the 900 tires or the track system. The greater flotation also helps recover acres when the ground is muddy.
2720 Harvester Features

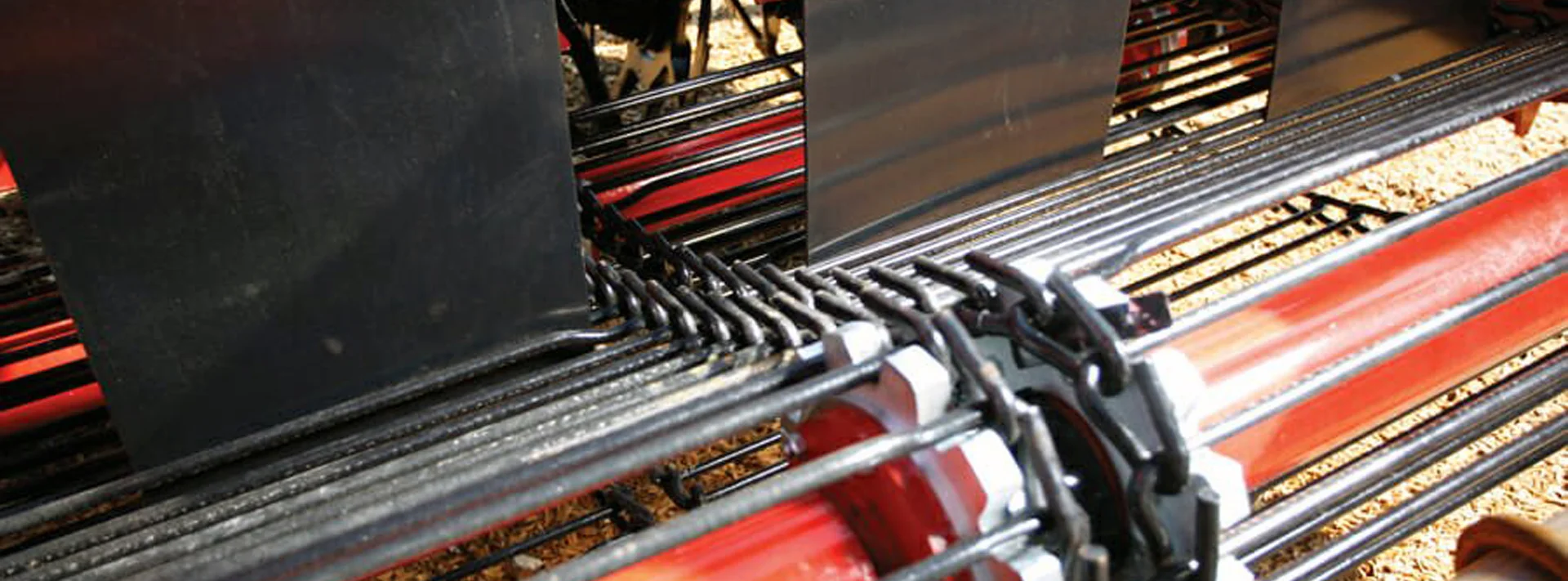

Amity harvesters utilize an apron chain between the lifter wheels and the grabrolls, transferring the crop through the harvester and removing a majority of the dirt.
The Amity row finder is a simple, effective tool to keep your harvester on the row. The row finder also has a backup feature that allows you to backup without lifting the machine or damaging the row finder.
Grabrolls on Amity Technology harvesters are designed to remove any remaining dirt or trash from the sugar beets before they are elevated into the tank. Grabrolls can easily be adjusted to be more or less aggressive, depending on field conditions.
Amity paddles effectively move the sugar beets from the lifter wheels into the harvester.
Easy pinch point adjustments on Amity harvesters help you pull more taproot in dry conditions and less mud in wet conditions.
An optional PTO hanger keeps PTO shaft off the ground and clean.
|Number of Rows||8 to 12||8 or 12|
|Row Spacing||30 or 22″||30″ or 22”|
|Total Weight||46,000 lbs||45,000 lbs|
|Vertical Load||8,600 lbs||8,100 lbs|
|Length||28’ 4”||32’ 4”|
|(with boom down)||24’ 6”||25’ 4”|
|(with boom up)||31’||32’ 8″|
|Tank Capacity||4.5 tons||4.5 tons|
|Tractor Requirements (minimum):|
|Power (PTO)||250 hp||250 hp|
|PTO Speed||1,000 rpm||1,000 rpm|
|Capacity||30 gpm||30 gpm|
|Pressure||2,700 psi||2,700 psi|
